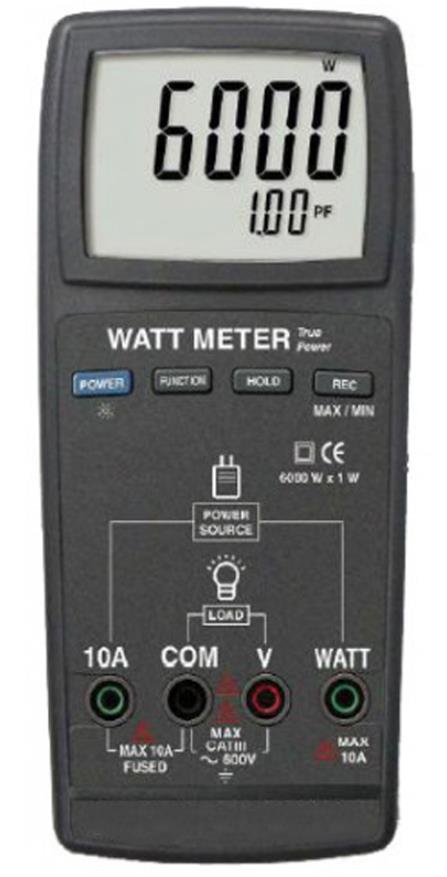

Power Factor Meter Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11475
Quick Answer: The Power Factor Meter measures power factor, true power, AC voltage and AC current, with ranges of 6000W, 600V and 10A shown on a large dual LCD display.
Last updated: October 2026
Key Features
Measures power factor, watt, ACV and ACA
True power up to 6000W with 1W resolution
True RMS ACV up to 600V and ACA up to 10A
Large dual LCD display with backlight, 9999 reading
Max./Min. record, data hold and memory recall
RS232 computer interface
Technical Specifications
Specification
Value
Watt range
6000W
Watt accuracy
± (1% + 5W)
ACV range
600V
ACV accuracy
± (0.3% + 0.3V)
ACV input impedance
10MΩ
ACA range
10A
ACA accuracy
± (0.3% + 0.03A)
Power factor range
1.00
Power factor resolution
0.01
Sampling time
1 sec.
About This Product
The Power Factor Meter reads power factor, true power, AC voltage and AC current, selecting the range automatically and adjusting its own zero. Readings can be held, recorded as maximum or minimum values, stored and recalled, and passed to a computer through the RS232 interface. A low battery indicator shows when the battery needs changing. The Power Factor Meter is available for supply within the United Kingdom and for export to Palestine, Yemen, United Arab Emirates, Vanuatu, Bosnia and Herzegovina, and Dominican Republic.
Frequently Asked Questions
Q1. What does the Power Factor Meter measure? It measures power factor, watt (true power) up to 6000W, ACV (true RMS) up to 600V and ACA (true RMS) up to 10A.
