DC Circuit / Network Trainer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11488
Quick Answer: The DC Circuit / Network Trainer is an experiment board for studying DC circuits, with pre-assembled components in functional circuit blocks, 2mm sockets and fault simulation.
Last updated: October 2026
Key Features
Pre-assembled components in functional circuit blocks
Blocks linked and changed with jumpers and connection cables
Printed circuit board with protective treatment and mimic diagram
2mm sockets for test points and connections
8-pole female DIN connector for the power supply unit
Fault simulation
Technical Specifications
Specification
Value
Type
Panel
Power source
220V ~240V AC 50 Hz, 1 Phase
Sockets
2mm
Power connector
8-pole female DIN
About This Product

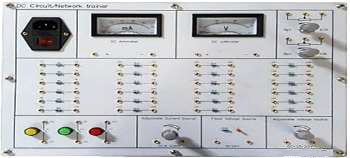

The DC Circuit / Network Trainer lets students build experiment circuits by linking its circuit blocks with jumpers and cables. Topics include Ohm's Law, series and parallel resistive circuits, Kirchhoff's Laws, Thevenin's, Norton's and superposition theorems, rheostats and potentiometers, and power transfer in DC. A printed operation manual comes with the standard accessories.
Frequently Asked Questions
Q1. Which theorems can be studied on the DC Circuit / Network Trainer? Kirchhoff's Laws, Thevenin's Theorem, Norton's Theorem and the Superposition Theorem, along with Ohm's Law and power transfer.
