DOL Starter Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11492

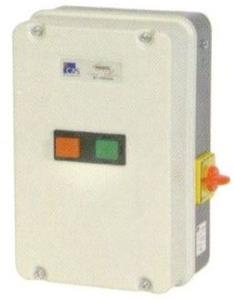

Quick Answer: The DOL Starter is a direct-on-line starter for 3 phase motors with a 4 pole contactor and a thermal overload relay, rated at 3HP/2.2kW.
Last updated: October 2026
Key Features
4 pole contactor
Thermal overload relay, range 4.0 to 6.0A
Flag for trip indication and manual reset
Start and stop push buttons, with locking for the stop button
NO/NC potential free contacts
Power rating 3HP/2.2kW
Technical Specifications
Specification
Value
Power rating
3HP/2.2kW
Relay range
4.0 ~6.0A
Contactor
4 pole
Contacts
NO/NC potential free
Motor
3 phase
About This Product
The DOL Starter starts and stops a 3 phase motor with push buttons, and the stop button can be locked. The thermal overload relay gives overload protection, a flag shows when it has tripped, and it is reset by hand.
Frequently Asked Questions
Q1. What relay range does the DOL Starter have? The thermal overload relay covers 4.0 to 6.0A, for a motor rating of 3HP/2.2kW.
