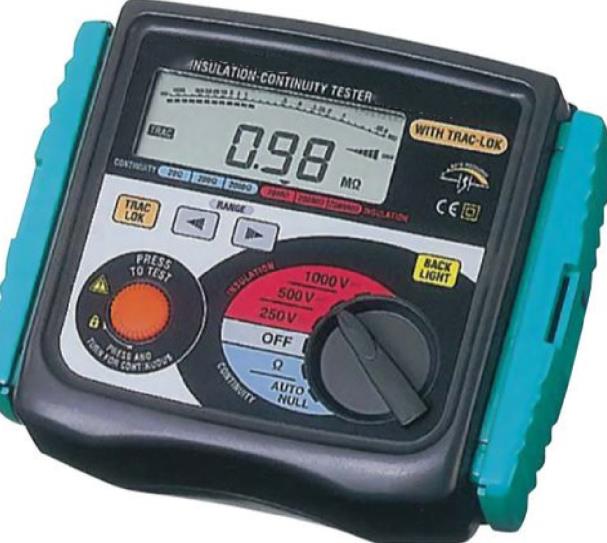

Insulation Tester Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11459
Quick Answer: The Insulation Tester measures insulation resistance from 0.2 to 1000MΩ at 1000 Volt, with a bargraph display and a live circuit warning beeper.
Last updated: October 2026
Key Features
Insulation range 0.2 to 1000MΩ
Test voltage 1000 Volt
Bargraph display of insulation resistance
Shows external AC voltage with a flashing symbol
Auto null subtracts test lead resistance
Live circuit warning beeper and backlight
Technical Specifications
Specification
Value
Insulation measurement range
0.2M Ω ~ 1000MΩ
Accuracy
± (5% + 5d)
Voltage
1000 Volt
Accessories
Test lead, instruction manual
About This Product
The Insulation Tester checks insulation resistance at 1000 Volt and also measures continuity resistance, automatically subtracting the test lead resistance first. A beeper warns if the circuit is live, and the charge stored in the circuit is discharged when the test button is released. A backlight helps in dim areas, and a lock mode saves battery life during tests. Besides buyers across the United Kingdom, the Insulation Tester can be exported to institutions in Antigua and Barbuda, Sierra Leone, Samoa, Montenegro, and Chile.
Frequently Asked Questions
Q1. Does the Insulation Tester discharge the circuit after a test? Yes, releasing the test button automatically discharges the charge stored in the circuit under test.
