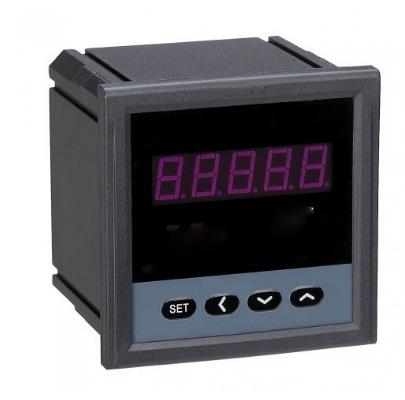

Digital Wattmeter Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11476
Quick Answer: The Digital Wattmeter is a microprocessor based wattmeter for 3 phase and single phase measurement, reading power from 0.3 W-2250 W and power factor.
Last updated: October 2026
Key Features
Current ranges 0.1A, 0.5A, 1A and 5A
Voltage ranges 3V, 15V, 30V, 240V and 450V
Power measured 0.3 W-2250 W
Frequency range 0-3kHz
Power factor measurement
Can be factory set for CT/PT ratios to give a direct reading
Technical Specifications
Specification
Value
Display
Digital
Phase
Three phase
Current ranges
0.1A, 0.5A, 1A, 5A
Voltage ranges
3V, 15V, 30V, 240V, 450V
Power measured
0.3 W-2250 W
Frequency range
0-3kHz
About This Product
The Digital Wattmeter measures power and power factor on 3 phase and single phase supplies. A current and voltage range is chosen to suit the circuit, and the meter can be factory set for CT/PT ratios so that it gives a direct reading. A test lead, battery and user manual are supplied.
Frequently Asked Questions
Q1. What power range does the Digital Wattmeter measure? It measures from 0.3 W-2250 W, over a frequency range of 0-3kHz.
