Voltmeter Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11477

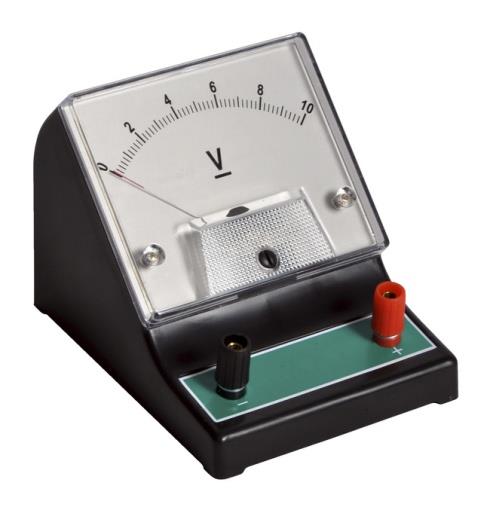

Quick Answer: The Voltmeter is a moving coil voltmeter of accuracy class 0.5, offered in AC and DC versions with 4 ranges each and a 135mm scale.
Last updated: October 2026
Key Features
AC version with 4 ranges: 75/150/300/600V
DC version with 4 ranges across 1V-1000V
Accuracy class 0.5
135mm scale length
Binding post or safety socket connection
Case with glass window, 195 x 169 x 86 mm, 1.7kg
Technical Specifications
Specification
Value
Principle
Moving coil type
Accuracy
Class 0.5
Scale length
135mm (5-3/8 inch)
Weight
1.7kg
Dimensions
195 x 169 x 86 mm (L x W x D)
Case
With glass window
AC ranges
75/150/300/600V
DC ranges
1V-1000V
About This Product
The Voltmeter measures voltage in AC or DC circuits, depending on the version chosen, and is read on a 135mm scale behind a glass window. Each version has 4 ranges, and leads connect through binding posts or safety sockets. Export supply of the Voltmeter can be arranged to laboratories and schools in Guinea-Bissau, Jamaica, Malaysia, Honduras and Benin.
Frequently Asked Questions
Q1. What ranges does the AC version of the Voltmeter have? The AC version has 4 ranges: 75/150/300/600V.
