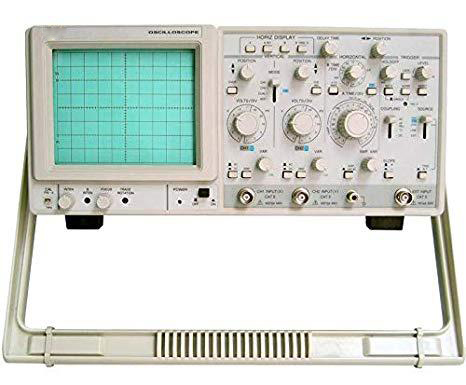

Analog Oscilloscope, Dual Trace Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11480
Quick Answer: The Analog Oscilloscope, Dual Trace is a dual channel analogue oscilloscope with a sensitivity of 1mV/div, delayed sweep and a 6-inch rectangular screen with an 8 x 10div internal graticule.
Last updated: October 2026
Key Features
Dual channel with 4 traces display
High sensitivity 1mV/div, expanded to 20V/div
Delayed sweep with a separate second time base for zoom
10 times sweep magnification
ALT triggering, hold off and trigger level lock
TV synchronisation, CH1 output and Z-axis modulation input
Technical Specifications
Specification
Value
Channels
Dual
Sensitivity
1mV/div
Screen
6-inch rectangular, internal graticule 8 x 10div (1div=1cm)
Accelerating voltage
2kV
Input impedance
1MΩ±3%
Max. input voltage
400V (DC + ACp-p) at 1kHz
Input coupling
AC, DC, GND
Vertical operation mode
CH1, CH2, ALT, CHOP, ADD, CH2 INV
Sweep magnification
10 times
Power source
220VAC, 50Hz, 1 Phase
About This Product
The Analog Oscilloscope, Dual Trace shows two input signals together, alternately or chopped, or adds them, and CH2 can be inverted. The delayed sweep and second time base let the user zoom into part of a signal, while 10 times sweep magnification spreads out fast events. Trigger level lock and hold off help keep the trace steady.
Frequently Asked Questions
Q1. Which vertical modes does the Analog Oscilloscope, Dual Trace offer? CH1, CH2, ALT, CHOP, ADD and CH2 INV.
