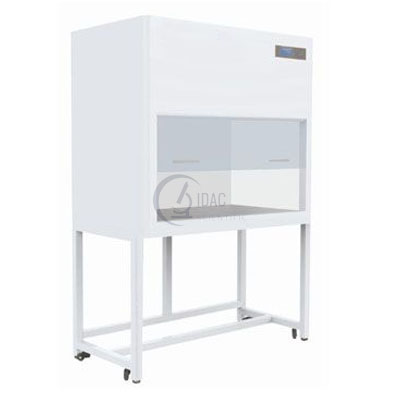

Vertical Laminar Flow Cabinet Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10143
Quick Answer: The Vertical Laminar Flow Cabinet comes in four sizes, from a 630mm to a 1340mm internal width, with a washable polyester pre-filter and a HEPA filter rated 99.999% at 0.3um. Air speed is adjustable, averaging 0.3 to 0.5m/s.
Last updated: October 2026
Key Features
- Four sizes, internal widths 630, 800, 940 and 1340mm
- Washable polyester fibre pre-filter and HEPA filter, 99.999% at 0.3um
- Adjustable air speed, average 0.3 to 0.5m/s
- 304 stainless steel work table
- LED display
- UV lamps supplied as standard
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 680 x 410 x 1160 / 802 x 650 x 1550 / 1040 x 615 x 1770 / 1440 x 615 x 1770 mm |
| Internal size (W x D x H) | 630 x 375 x 615 / 800 x 600 x 540 / 940 x 540 x 545 / 1340 x 540 x 545 mm |
| Work surface height | 660mm / 750mm / 750mm (three larger sizes) |
| Airflow velocity | Average 0.3 to 0.5m/s, adjustable |
| HEPA filter | 99.999% efficiency at 0.3um |
| Noise | Below 60dB |
| UV lamp | 15W / 20W / 18W / 30W, 253.7 nm |
| Power consumption | 160W / 350W / 350W / 600W |
| Power supply | AC 220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz |
| Gross weight | 50kg / 116kg / 131kg / 174kg |
About This Product
This laminar flow hood takes air through its filters and sends it across the work surface in a laminar, unidirectional stream to give a particle-free working area. The sides are enclosed and kept under positive pressure to keep out room air. The smallest size includes water and gas taps, and the larger sizes come with a base stand. The Vertical Laminar Flow Cabinet is available for supply within the United Kingdom and for export to United States, Burundi, Democratic Republic of the Congo, Republic of the Congo, Equatorial Guinea and Latvia.
Frequently Asked Questions
Q1. What sizes does the Vertical Laminar Flow Cabinet come in?
Four sizes, with internal widths of 630, 800, 940 and 1340mm.
Q2. Is the air speed adjustable?
Yes. Air speed is adjustable, with an average of 0.3 to 0.5m/s.
Related: Fume Hoods and Safety Cabinets, Vertical Laminar Flow Cabinet-Double Sides Type, BBS-Vertical Laminar Flow Cabinet, Horizontal Laminar Flow Cabinet.
For a quotation on the Vertical Laminar Flow Cabinet, contact Didac Scientific.
