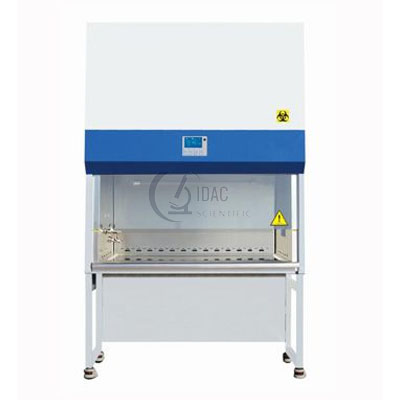

Biological Safety Cabinet Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10115
Quick Answer: The Biological Safety Cabinet has two HEPA filters rated 99.999% at 0.3um, a motorised front window of laminated toughened glass and a large LCD display. It comes in three widths, with internal working widths of 910, 1210 and 1700mm.
Last updated: October 2026
Key Features
- Two HEPA filters, 99.999% efficiency at 0.3um, with filter life indicator
- Motorised front window, two-layer laminated toughened glass ≥5mm, anti UV
- Large LCD display of operating parameters
- Alarms for abnormal airflow, filter replacement and unsafe window height
- Water tap, gas tap and 2 waterproof sockets
- Speed-adjustable ECM DC motor
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 1087 x 775 x 2265mm / 1383 x 775 x 2295mm / 1873 x 775 x 2295mm |
| Internal size (W x D x H) | 910 x 600 x 660mm / 1210 x 660 x 660mm / 1700 x 600 x 660mm |
| Work surface height | 750mm |
| Max opening | 520mm / 550mm / 550mm |
| Inflow | 348 / 587 / 824 m3/h |
| Down flow | 649 / 863 / 1212 m3/h |
| HEPA filter | Two, 99.999% at 0.3um |
| Noise | ≤61 dB (NSF 49) / ≤58 dB (EN 12469) |
| Illumination | ≥1000Lux |
| UV lamp | 18W / 30W / 40W, 253.7 nm emission |
| Illuminating lamp | LED, 10W x 2 / 18W x 2 / 22W x 2 |
| Power supply | AC220/110V ±10%, 50/60Hz |
| Power consumption | 300W / 400W / 500W |
About This Product
This bio safety cabinet takes in air at the front opening and divides filtered air between down flow and exhaust through two HEPA filters. Operating parameters are shown on the large LCD, and alarms warn of abnormal airflow velocity, filter replacement and a front window left at an unsafe height. A UV lamp emitting at 253.7 nm and LED lighting are fitted.
Frequently Asked Questions
Q1. What sizes does the Biological Safety Cabinet come in?
Three sizes, with internal working widths of 910mm, 1210mm and 1700mm and a work surface height of 750mm.
Q2. What alarms are fitted?
Alarms for abnormal airflow velocity, filter replacement and the front window at an unsafe height.
Related: Fume Hoods and Safety Cabinets, A2 Biological Safety Cabinet, Class II A2 Biological Safety Cabinet, Biological Class 2 Safety Cabinet.
For a quotation on the Biological Safety Cabinet, contact Didac Scientific.
