Horizontal Laminar Flow Cabinet Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10145

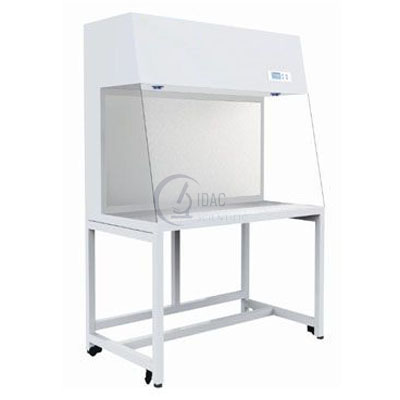

Quick Answer: The Horizontal Laminar Flow Cabinet sends HEPA-filtered air across the work surface in a laminar stream at an average 0.3 to 0.5m/s, with transparent side glass windows and microprocessor control. It comes in internal widths of 1040mm and 1440mm.
Last updated: October 2026
Key Features
- Washable polyester pre-filter and HEPA filter, 99.999% at 0.3um
- Average airflow velocity 0.3 to 0.5m/s
- Microprocessor control with LED display
- Transparent 5mm anti-UV toughened glass side windows
- Two waterproof sockets in the side panel
- 304 stainless steel work table
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 1060 x 800 x 1690mm / 1460 x 800 x 1690mm |
| Internal size (W x D x H) | 1040 x 500 x 650mm / 1440 x 500 x 650mm |
| Work surface height | 750mm |
| Airflow velocity | Average 0.3 to 0.5m/s |
| HEPA filter | 99.999% efficiency at 0.3um |
| Noise | Below 60dB |
| LED lamp | 12W x 1 / 16W x 1 |
| UV lamp | 20W x 1 / 30W x 1, 253.7 nm |
| Power consumption | 320W / 620W |
| Power supply | AC220V ±10%, 50/60Hz; 110V ±10%, 60Hz |
| Gross weight | 165kg / 179kg |
About This Product
This laminar flow bench creates a particle-free working area by passing filtered air across the work surface, with enclosed sides kept under positive pressure to keep room air out. The side windows let in light, and the two waterproof sockets in the side panel power small devices used inside the cabinet. Export supply of the Horizontal Laminar Flow Cabinet can be arranged to laboratories and schools in India, Palestine, Qatar, Fiji, Malawi and Montenegro.
Frequently Asked Questions
Q1. What sizes does the Horizontal Laminar Flow Cabinet come in?
Internal widths of 1040mm and 1440mm, with a 750mm work surface height.
Q2. What is supplied as standard?
An LED lamp, two UV lamps, a base stand and two waterproof sockets.
