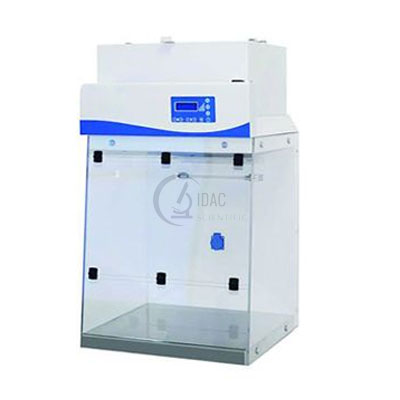

Compounding Hood Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10147
Quick Answer: The Compounding Hood is a tabletop unit offered as a vertical laminar flow type, with positive pressure that protects the sample, or a Class I type, with negative pressure that protects the operator and environment. Both use a HEPA filter rated 99.999% at 0.3 μm.
Last updated: October 2026
Key Features
- Two types: vertical laminar flow or Class I
- Tabletop design that is easy to carry and saves space
- HEPA filter, 99.999% efficiency at 0.3 μm; active carbon filter on some versions
- Adjustable air speed
- Microprocessor control with LED display
- UV lamp and LED lamp
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 550 x 460 x 700mm / 600 x 581 x 1115mm / 700 x 620 x 1150mm |
| Internal size (W x D x H) | 480 x 340 x 370mm / 580 x 520 x 613mm / 640 x 550 x 700mm |
| Max opening | 310mm / 590mm / 660mm |
| Front window | Manual; 5mm toughened glass, anti UV, or acrylic |
| LED lamp | 4W x 1 / 4W x 1 / 4W x 2 |
| UV lamp | 8W x 1 / 8W x 1 / 15W x 1, 253.7 nm |
| Power consumption | 100W / 150W / 300W |
| Power supply | AC220V ±10%, 50/60Hz; 110V ±10%, 60Hz |
About This Product
Choose the laminar flow type when the sample needs protecting, or the Class I type when the operator and environment need protecting from the work. Each is a compact tabletop unit, and some versions add an active carbon filter alongside the HEPA filter.
Frequently Asked Questions
Q1. What is the difference between the two Compounding Hood types?
The vertical laminar flow type uses positive pressure to protect the sample; the Class I type uses negative pressure to protect the operator and environment.
Related: Fume Hoods and Safety Cabinets, BBS-Vertical Laminar Flow Cabinet, Class I Biological Safety Cabinet, Vertical Laminar Flow Cabinet.
For a quotation on the Compounding Hood, contact Didac Scientific.
