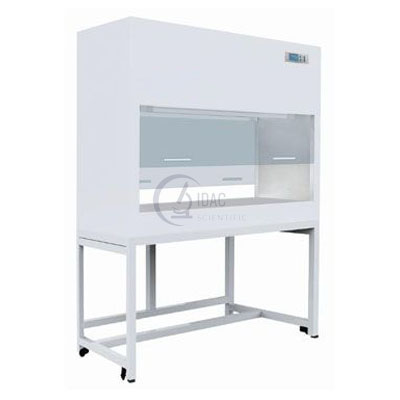

Vertical Laminar Flow Cabinet-Double Sides Type Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10142
Quick Answer: The Vertical Laminar Flow Cabinet-Double Sides Type passes air through a washable polyester pre-filter and a HEPA filter rated 99.999% at 0.3um, then across the work surface in a laminar stream at 0.3 to 0.5m/s. It comes in internal widths of 940mm and 1340mm.
Last updated: October 2026
Key Features
- Enclosed sides kept under constant positive pressure
- Washable polyester fibre pre-filter and HEPA filter, 99.999% at 0.3um
- Average airflow velocity 0.3 to 0.5m/s
- 304 stainless steel work table
- Manual 5mm toughened glass front window, anti-UV
- Base stand, LED lamp and UV lamps supplied as standard
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 1040 x 660 x 1770mm / 1440 x 660 x 1770mm |
| Internal size (W x D x H) | 940 x 560 x 545mm / 1340 x 560 x 545mm |
| Work surface height | 750mm |
| Airflow velocity | Average 0.3 to 0.5m/s |
| HEPA filter | 99.999% efficiency at 0.3um |
| Noise | Below 60dB |
| Max opening | 310mm |
| UV lamp | 18W x 1 / 30W x 1, 253.7 nm |
| LED lamp | 12W x 1 / 16W x 1 |
| Power consumption | 350W / 600W |
| Power supply | AC 220V ±10%, 50/60 Hz; 110V ±10%, 60 Hz |
| Gross weight | 150kg / 186kg |
About This Product
This laminar flow bench creates a particle-free working area by filtering air and sending it across the work surface in a unidirectional stream. The sides are enclosed and kept under positive pressure to keep room air out, and an electric height adjustable base stand is available as an option. Export supply of the Vertical Laminar Flow Cabinet-Double Sides Type can be arranged to laboratories and schools in Madagascar, Cambodia, Benin, Zambia, Philippines and South Africa.
Frequently Asked Questions
Q1. What filters does the Vertical Laminar Flow Cabinet-Double Sides Type use?
A washable polyester fibre pre-filter and a HEPA filter rated 99.999% at 0.3um.
Q2. What sizes are available?
Internal widths of 940mm and 1340mm, with a 750mm work surface height.
Related: Fume Hoods and Safety Cabinets, Vertical Laminar Flow Cabinet, BBS-Vertical Laminar Flow Cabinet, Horizontal Laminar Flow Cabinet.
For a quotation on the Vertical Laminar Flow Cabinet-Double Sides Type, contact Didac Scientific.
