Tachometer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11506

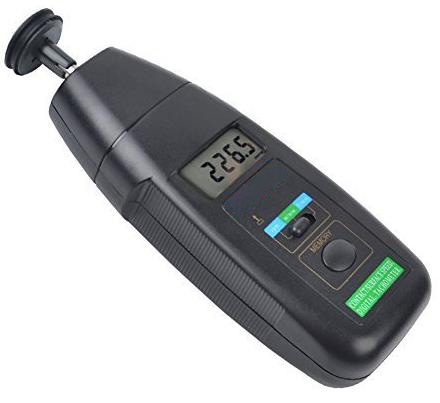

Quick Answer: The Tachometer is a digital photo contact tachometer with a photo range of 5 to 99,999 rpm and a contact range of 0.5 to 19,999 rpm, read on a 5 digit LCD.
Last updated: October 2026
Key Features
Photo range 5 to 99,999 rpm
Contact range 0.5 to 19,999 rpm
Also reads surface speed in m/min or ft/min
Accuracy ± (0.05% + 1d) on rpm
Stores the last, maximum and minimum values
Tough ABS case designed to hold in the hand
Technical Specifications
Specification
Value
Function
Photo contact tachometer
Measuring range (photo)
5 ~ 99,999 rpm
Measuring range (contact)
0.5 ~ 19,999 rpm
Resolution (rpm)
1
Resolution (m/min)
0.1
Accuracy (rpm)
± (0.05% + 1d)
Surface speed accuracy
± (2% + 1d)
Display
LCD, 5 digits with function annunciation
Time base
Quartz crystal, 4.194 MHz
About This Product
The Tachometer measures rotational speed either in photo mode or by contact, and it can also read surface speed. Readings appear on a 5 digit LCD, and the last, maximum and minimum values can be stored. A quartz crystal time base sets the timing for each reading. Besides buyers across the United Kingdom, the Tachometer can be exported to institutions in South Sudan, Mongolia, Chad, Madagascar, Gambia and Republic of the Congo.
Frequently Asked Questions
Q1. What speed range does the Tachometer cover? In photo mode it reads 5 to 99,999 rpm, and in contact mode 0.5 to 19,999 rpm, with a resolution of 1 rpm.
