Quick Answer: The Ammeter is a moving coil ammeter of accuracy class 0.5, offered in AC and DC versions, each with 4 ranges and a 135mm scale.
Last updated: October 2026
Key Features
AC and DC versions
Accuracy class 0.5
135mm scale length
AC ranges 0.5A-30A and 10m-300mA
DC ranges 0.1mA-1000mA and 0.1-30A
Case with glass window, 195 x 169 x 86 mm, 1.7kg
Technical Specifications
Specification
Value
Principle
Moving coil type
Accuracy
Class 0.5
Scale length
135mm (5-3/8 inch)
Weight
1.7kg
Dimensions
195 x 169 x 86 mm (L x W x D)
Case
With glass window
AC ranges
0.5A-30A, 10m-300mA
DC ranges
0.1mA-1000mA, 0.1-30A
About This Product

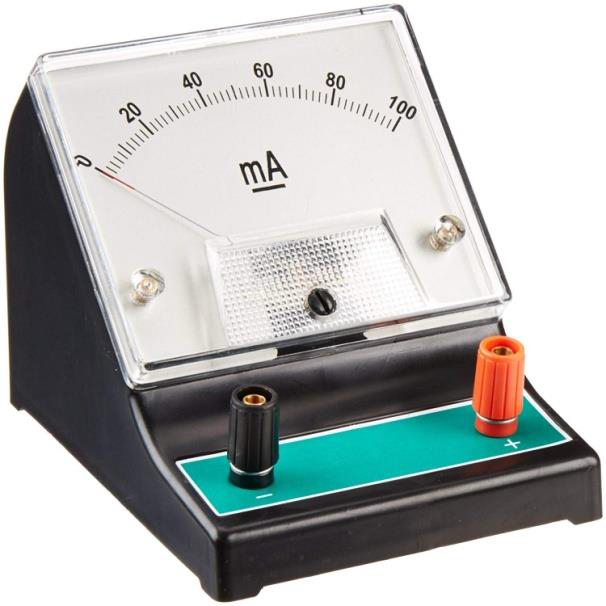

The Ammeter measures current in AC or DC circuits, depending on the version chosen, and is read on a 135mm scale behind a glass window. Each version has 4 ranges, so a range can be selected to suit the current being measured.
Frequently Asked Questions
Q1. What ranges does the DC version of the Ammeter cover? The DC version covers 0.1mA-1000mA and 0.1-30A across its 4 ranges.
