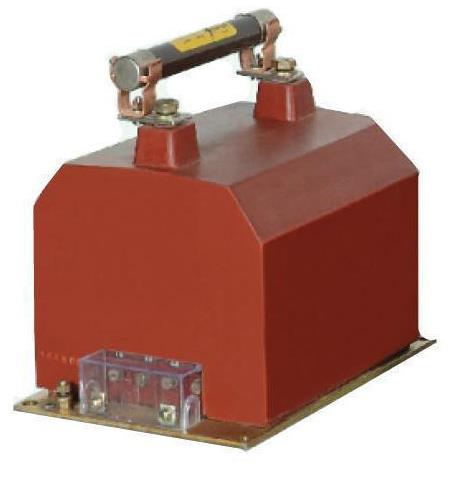

P. T. 11KV/110V Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11507
Quick Answer: The P. T. 11KV/110V is a potential transformer with a voltage ratio of 1:100 (110V/11KV) and a rated power of 50VA, housed in a plastic box with 4mm safety socket connections.
Last updated: October 2026
Key Features
Voltage ratio 1:100 (110V/11KV)
Rated power 50VA
Rated frequency 50Hz
Number of poles 1 & 2
4mm safety socket connections
Fuse for over current protection
Technical Specifications
Specification
Value
Voltage ratio
1:100 (110V/11KV)
Number of poles
1 & 2
Rated frequency
50Hz
Rated power
50VA
Connection
4mm safety socket
About This Product
The P. T. 11KV/110V scales voltage in the ratio 1:100, so that 11KV on one side corresponds to 110V on the other. Its plastic box can be mounted on another surface, connections are made through 4mm safety sockets, and a fuse gives over current protection.
Frequently Asked Questions
Q1. What is the voltage ratio of the P. T. 11KV/110V? The ratio is 1:100, so 11KV corresponds to 110V. It is rated at 50VA and 50Hz.
