Table Top Autoclave Class N

Product Code : DS-A-10045

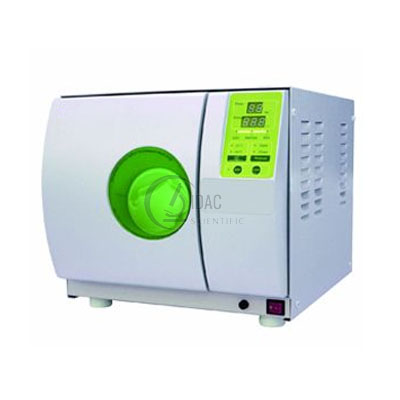

Table Top Autoclave Class N
Description:
Autoclaves are equipment for sterilizing widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized.

Features:
Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
Thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments.
• Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
Automatic malfunction detection system makes easy maintaining.
Microprocessor control, LED display and modularized panel for easy operation.

Specifications:

Capacity

18L

24L

Sterilization Class

Class N (according to EN 13060 standard)

Sterilization Temp.

121,134

Drying Procedure

Heating dry

Display

LED display

Control Precision

Temperature: 1

Pressure: 0.1bar

Safety System

Hand lock door

Relief valve in case of over pressure

Pressure or temperature over load protection

Alarm for system failure, finish reminding

Tray Holder

3 pcs SS trays on SS shelf

Chamber

Medical stainless steel 304 unibody structure

Max working pressure:2.3bar

Min working pressure: 1.1bar

Max temperature: 145

Ambient Temp.

540

Noise

<50dB

Power Supply

110/220V±10%, 60/50Hz

Power Consumption

1500W

1700W

Chamber Size(mm)

φ245×350

φ245*450

External Size(mm)

560*450*400

670*450*400

Packing Size(mm)

660*525*495

770*525*495

Gross Weight(kg)

53

60
