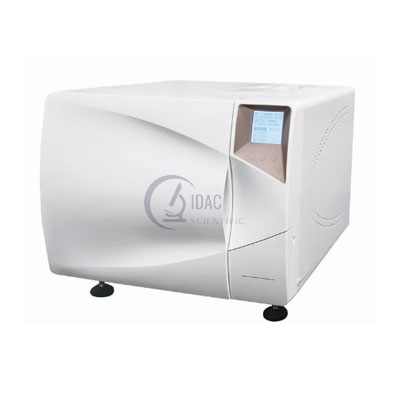

Table Top Autoclave Class S Manufacturer,Supplier and Exporter in Uk
Product Code : DS-A-10034
Quick Answer: The Table Top Autoclave Class S is a high pressure unit that uses steam as its medium, offered in 24 L, 45 L and 80 L volumes. It has a built-in open type water tank with a water quality monitor, internal filter and water level sensor.
Last updated: October 2026
Key Features
Built-in open type water tank
Water quality monitor
Water filter inside the tank
Water level sensor
A fully filled tank supports repeated programme runs
Technical Specifications
Specification
Value
Volume
24 L, 45 L, 80 L
Design pressure
-0.1/0.3 MPa
Design temperature
144 °C
Temperature range
105 to 138 °C
Chamber material
Medical stainless steel 304
Standard loading tray
Type A, Type B
Power supply
110/220V ±10%, 50/60Hz or 220V ±10%, 50/60Hz
Power consumption
2.6 kW, 5.8 kW, 7.4 kW
Chamber size
Φ250 x 450 mm, Φ316 x 618 mm, Φ358 x 717 mm
Gross weight
80 kg, 140 kg, 205 kg
About This Product
The Table Top Autoclave Class S takes wrapped or unwrapped instruments, fabric, utensils, culture medium and unsealed liquid. Its built-in water tank, when fully filled, supports repeated programme runs, and the chamber works across a 105 to 138 °C temperature range.
Frequently Asked Questions
Q1. What volumes is the Table Top Autoclave Class S available in? 24 L, 45 L and 80 L, with chamber sizes of Φ250 x 450 mm, Φ316 x 618 mm and Φ358 x 717 mm.
Q2. How is water supplied? From a built-in open type water tank with a water quality monitor, internal filter and water level sensor. A full tank supports repeated programme runs.
