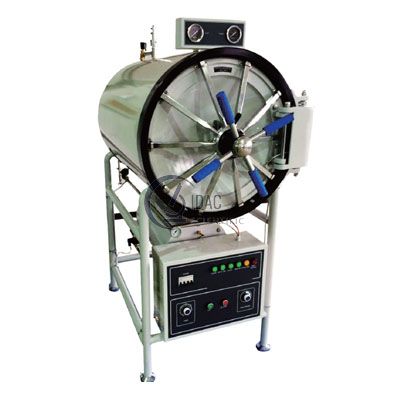

Horizontal Cylindrical Pressure Autoclave Manufacturer,Supplier and Exporter in Uk
Product Code : DS-A-10030
Quick Answer: The Horizontal Cylindrical Pressure Autoclave is a horizontal autoclave with a 304 stainless steel chamber, an automatic process and a drying function. It is offered in 150L, 200L, 280L, 400L and 500L capacities.
Last updated: October 2026
Key Features
- Drying function
- 304 stainless steel chamber
- Automatic process with interlock function
- Over-temperature and over-pressure protection device
- Safety valve for over-pressure protection
- Water level sensor cuts the power automatically if the water level is low
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 150L, 200L, 280L, 400L, 500L |
| Chamber size | Φ440 x 1000 mm to Φ700 x 1300 mm |
| Working pressure | 0.22 MPa |
| Working temperature | 134 °C |
| Temperature range | 40 to 134 °C |
| Process time | 0 to 60 min |
| Drying time | 0 to 60 min |
| Temperature accuracy | ≤ ±2 °C |
| Power consumption | 9 kW, 12 kW, 18 kW |
| Power supply | 220V/380V, 50/60Hz or 380V, 50Hz |
| Gross weight | 320 kg to 580 kg |
About This Product
Process time and drying time can each be set between 0 and 60 minutes, with temperature adjustable from 40 to 134 °C at a working pressure of 0.22 MPa. A water level sensor cuts the power if the water runs low, and an interlock function is fitted. The Horizontal Cylindrical Pressure Autoclave is available for supply within the United Kingdom and for export to Paraguay, Argentina, Georgia, Republic of the Congo, Grenada and Serbia.
Frequently Asked Questions
Q1. What capacities does the Horizontal Cylindrical Pressure Autoclave come in?
Five capacities are listed: 150L, 200L, 280L, 400L and 500L.
Q2. What happens if the water level is low?
The water level sensor cuts the power off automatically.
Related: Autoclaves, Horizontal Autoclave, Large Horizontal Autoclave, Horizontal Pulse Vacuum Autoclave.
For a quotation on the Horizontal Cylindrical Pressure Autoclave, contact Didac Scientific.
