Horizontal Pulse Vacuum Autoclave Manufacturer,Supplier and Exporter in India

Horizontal Pulse Vacuum Autoclave

Product Code : DS-A-10028

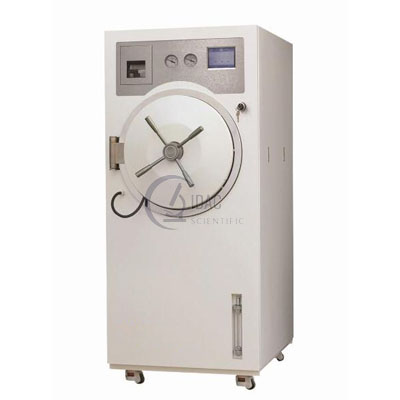

Horizontal Pulse Vacuum Autoclave
Application:
It is suitable for all wrapped or unwrapped solid  instrument, A-class cavity instrument (dental hand-pieces and endoscopes), implantable instrument, dressing fabric and rubber tubes, etc.
It can be widely used in department of stomatology and ophthalmology, operating room and other medical institutions.

Features:
1. Built-in efficient steam generator, microcomputer temperature control.
2. Sterilization programs for fabric, instrument, rubber, liquid, cavity, B&D test, PCD test and leakage test.
3. LCD displays temperature, pressure, time, running status, failure and warning code.
4. Intelligent drying system to guarantee the residual humidity of instrument and dressing no more than 0.2% and 1% respectively.
5. Equipped with printer to print date, time and process parameters.
6. Prefect four-level authority management system to avoid mis-operation.
7. Overheat auto protection device, dual door safety lock device, over pressure relief valve, short circuit protection, and overpressure protection.

Specifications:

Capacity

100L

135L

185L

300L

Chamber Size

Φ400*850mm

φ500*710mm

φ500*950mm

φ632*1000mm

Chamber material

304 medical stainless steel

Max working pressure

0.23Mpa

Vacuum limit

-0.08MPa

Working temp

105~136

Temp accuracy

±0.1

Power consumption

11kw

17kw

Power supply

380V, 50HZ

External size(mm)

1250*730*1660

1110*750*1742

1350*750*1742

1400*890*1780

Packaging size(mm)

1450*1000*1950

1370*890*2060

1510*890*2060

1700*1050*2090

Gross weight(kg)

310

470

540

830



    Download as Pdf
