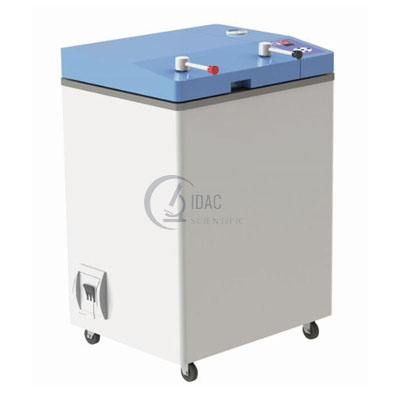

Flip-open Door Type Vertical Autoclave

Product Code : DS-A-10033

Flip-open Door Type Vertical Autoclave
Application range: Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.

Technical Features:
Complete protection system.
Automatic exhausting steam function.
LED displays inner temperature, time and error codes.
Flip-open door structure with spring booster, easy to open.
Reliable mechanical safety interlock feature.
Door cover is wrapped completely, to prevent scald effectively.
Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
External material: Cold rolled steel with anti-bacteria powder coating.
Radial self-expanding silicone rubber seals with high effect and long using life.
Optional printer for recording sterilization data.

Safety Features:
Over pressure, safety valve can automatically open to release pressure.
Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
Over temperature, the system will stop heating automatically and start alarm.
Over current, over voltage or electric leakage protection apparatus-air switch.

Specifications:

Capacity

30L

50L

75L

100L

Chamber size(Φ*L)

385*412 mm

385*515 mm

385*715 mm

385*915 mm

Chamber material

Polished SUS304 medical stainless steel

Max pressure

0.3MPa

Rated working pressure

0.22MPa

Max temperature

150

Working temp range

105134

Temp. accuracy

±0.1

Timing range

0-999min

Dynamic pulse exhaust time

0~9times

Water requirement

Distilled water or demineralized water

Standard Accessories

Stainless steel basket*1pc

Stainless steel basket*2pcs

Power consumption

2.8KW

3KW

3.5KW

4.5KW

Power supply

220V, 50/60Hz

Externalsize(W*D*H)mm

610*645*710

610*645*850

610*645*1000

610*645*1200

Packing Size(mm)

770*670*950

770*670*1060

770*670*1210

770*670*1430

Gross weight

100kg

108 kg

114 kg

125 kg
