AC Circuit / Network Trainer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11487

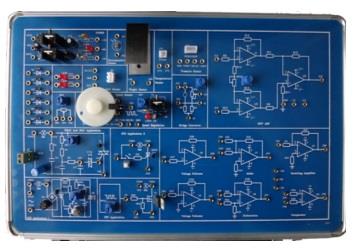

Quick Answer: The AC Circuit / Network Trainer is an experiment board for studying electronic components in AC circuits and the use of DC motors, with pre-assembled circuit blocks, 2 mm sockets and fault simulation.
Last updated: October 2026
Key Features
Pre-assembled components in functional circuit blocks
Blocks linked and changed with jumpers and connection cables
Printed circuit board with protective treatment and mimic diagram
2 mm sockets for test points and connections
8-pole female DIN connector for the power supply unit
Fault simulation
Technical Specifications
Specification
Value
Type
Panel
Power source
220V ~240V AC 50 Hz, 1 Phase
Sockets
2 mm
Power connector
8-pole female DIN
About This Product
The AC Circuit / Network Trainer lets students build experiment circuits by linking its circuit blocks with jumpers and cables. Topics include capacitive and inductive effects, impedance as a function of frequency, phase shift, RLC circuits, series and parallel resonance, active, reactive and apparent power, transformer and autotransformer tests, and DC motor behaviour, including the motor used as a generator. The AC Circuit / Network Trainer is available for supply within the United Kingdom and for export to New Zealand, Belgium, Tajikistan, Tunisia, Sri Lanka and Armenia.
Frequently Asked Questions
Q1. Can resonance be studied on the AC Circuit / Network Trainer? Yes. Students measure the resonant frequency in series and parallel circuits and the Q factor of a series resonant circuit.
