Table Top Freeze Dryer

Product Code : DS-FD-10111

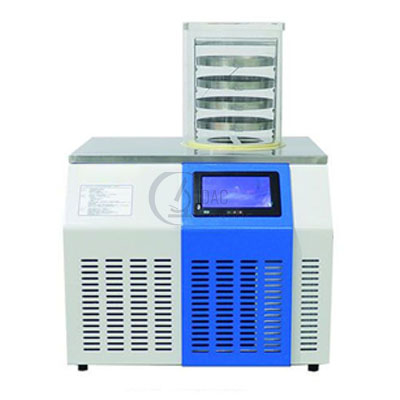

Table Top Freeze Dryer
Description:
Table Top Freeze Dryer widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. Ice condenser trap and operation panel are made by stainless steel.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. With cascade refrigeration technology.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Specifications:

Type

Standard chamber

Standard chamber

with 8 port manifold

Stoppering

chamber

Stoppering
chamber with 8 port manifold

Freeze Drying Area

0.12 m2

0.09 m2

Tray

4 pcs

3 pcs

Height Between Trays

50mm

68mm

Cold Trap Temperature

≤-56

Cold Trap Capacity

9.5L

Cold Trap Size (Diameter*H)

Φ215*260mm

Vacuum Degree

<10 Pa

Water Capture Capacity

3 Kg/24h

Tray Size (D*H)

Φ200*20mm

Φ180*20mm

Freeze Drying Time

24h

Loading Capacity/Shelf (Liquid)

0.3L

Total Loading Capacity (Liquid)

1.2L

0.9L

Drying Chamber Size (Diameter*H)

Φ260*310mm

Φ260*450mm

Total Qty. Of Vial Φ22

260

195

Total Qty. Of Vial Φ16

480

360

Total Qty. Of Vial Φ12

920

690

Refrigerant

R600a+R290+R23

Cooling System

Air cooling

Power Supply

220V/50Hz,60Hz (single phase)

110V/60Hz (single phase)

Power Consumption

1.3KW

External Size (W*D*H), mm

640*610*550/810

640*610*550/950

640*610*550/990



    Download as Pdf
