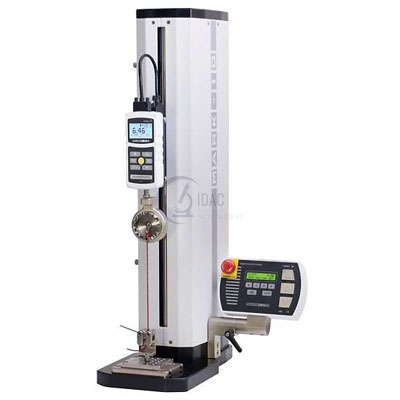

Modular Motorized Push / Pull Test Stand Manufacturer,Supplier and Exporter in Uk
Product Code : DS-DASGAGM-10478
Quick Answer: The Modular Motorized Push / Pull Test Stand is a single-column motorised test stand with programmable test speeds from 0.5 to 13 in/min (13-330 mm/min) and force loads up to 300 lbF (1.5 kN). It is used with a separate force gauge.
Last updated: October 2026
Key Features
- Programmable test speeds from 0.5 to 13 in/min (13-330 mm/min)
- Up/down/stop directional control over an 18" travel distance
- Handles force loads up to 300 lbF (1.5 kN)
- Travel limit switches, emergency stop and password protection
- Controlled from the panel or remotely via PC and ASCII commands
- Modular design accepts add-on control and measurement options
Technical Specifications
| Specification | Value |
|---|---|
| Test speed | 0.5 to 13 in/min (13-330 mm/min) |
| Travel distance | 18" |
| Maximum force load | 300 lbF (1.5 kN) |
| Control | Control panel, or remotely via PC and ASCII commands |
| Force gauge | Required, not included |
About This Product
The stand moves a force gauge up or down at a programmed speed to measure tensile or yield strength, compression, fatigue, impact, strain and material ductility. Its compact design fits on workbenches in research and development, laboratory and production settings. Control and measurement options can be added to the modular base, so the stand can be configured to the application. Besides buyers across the United Kingdom, the Modular Motorized Push / Pull Test Stand can be exported to institutions in Burundi, Malawi, Botswana, Samoa, Malaysia and Jordan.
Frequently Asked Questions
Q1. What force can the Modular Motorized Push / Pull Test Stand handle?
It handles force loads up to 300 lbF (1.5 kN).
Q2. Does the Modular Motorized Push / Pull Test Stand include a force gauge?
No. A force gauge is required and is supplied separately.
Q3. How can the Modular Motorized Push / Pull Test Stand be controlled?
It can be run from its control panel or remotely via PC and ASCII commands.
Related: Density and Specific Gravity and Gloss Meters, Force Gauge Test Stands, Advanced Digital Force Gauges, Digital Force Gauges.
For a quotation on the Modular Motorized Push / Pull Test Stand, contact Didac Scientific.
