Handheld Digital Cap Torque Testers Manufacturer,Supplier and Exporter in Uk
Product Code : DS-DASGAGM-10504

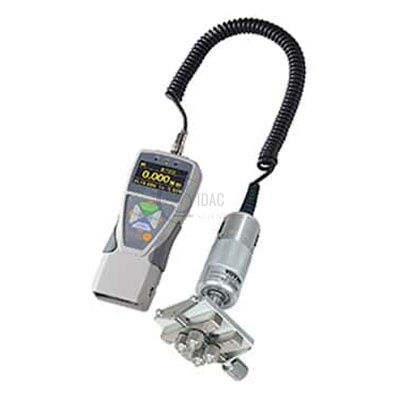

Quick Answer: The Handheld Digital Cap Torque Testers measure cap torque by hand in any position on caps up to 2" (51 mm) diameter, processing data at 2000 data points per second.
Last updated: October 2026
Key Features
Measures caps up to 2" (51 mm) diameter in any position
Bright EL display
Processes and transmits 2000 data points per second
High and low torque values with Go/NoGo LED indicators
AC adapter or rechargeable internal battery
Stores up to 1000 data points, with USB, RS-232 and analogue outputs
Technical Specifications
Specification
Value
Cap size
Up to 2" (51 mm) diameter
Data rate
2000 data points per second
Memory
Up to 1000 data points
Outputs
USB, RS-232, analogue
Power
AC adapter or rechargeable internal battery
About This Product
The tester is held in the hand, so cap torque can be measured in any position. High and low torque values are set in advance, and LED indicators show Go/NoGo conditions for each reading. Results can be stored internally or sent to a computer, and data acquisition software is included.
Frequently Asked Questions
Q1. What cap sizes can the Handheld Digital Cap Torque Testers measure? They measure caps up to 2" (51 mm) diameter.
Q2. How are the Handheld Digital Cap Torque Testers powered? They run from the AC adapter or wirelessly through the rechargeable internal battery.
