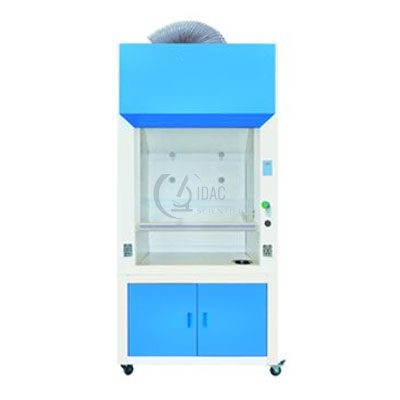

Ducted Fume Hood Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10124
Quick Answer: The Ducted Fume Hood has 9 adjustable air speed levels, a built-in PP blower and a 4 metre PVC exhaust duct of φ300mm. It comes in four widths, from 1000 to 1800mm.
Last updated: October 2026
Key Features
- Air speed adjustable over 9 levels
- Built-in PP axial flow or centrifugal blower, speed adjustable
- PVC exhaust duct, 4 metres standard length, φ300mm
- Manual 5mm toughened glass front window, height adjustable
- Melamine board interior resistant to acid, alkali and corrosion
- Memory function in case of power failure
Technical Specifications
| Specification | Value |
|---|---|
| External size (W x D x H) | 1000 / 1200 x 800 x 2365mm; 1500 / 1800 x 800 x 2465mm |
| Internal size (W x D x H) | 790 / 990 / 1290 / 1590 x 635 x 820mm |
| Work surface height | 900mm |
| Max opening | 750mm |
| Air velocity | 0.3 to 0.8m/s |
| Noise | ≤60dB |
| Exhaust duct | PVC, 4 metres, φ300mm |
| LED lamp | 12W x 1 / 12W x 1 / 16W x 1 / 12W x 2 |
| Power supply | AC220V ±10%, 50/60Hz; 110V ±10%, 60Hz |
| Power consumption | 400W / 400W / 500W / 500W |
About This Product
The Ducted Fume Hood carries extracted air out through its PVC exhaust duct, with the blower speed set across 9 levels. Its interior resists moderate acid and alkali, and the front glass window is raised and lowered by hand. Besides buyers across the United Kingdom, the Ducted Fume Hood can be exported to institutions in São Tomé and Príncipe, Saint Vincent and the Grenadines, Tajikistan, Kenya, Papua New Guinea, and Croatia.
Frequently Asked Questions
Q1. How long is the exhaust duct supplied with the Ducted Fume Hood?
The standard PVC exhaust duct is 4 metres long and φ300mm.
Q2. How many air speed levels are there?
9 levels.
Related: Fume Hoods and Safety Cabinets, Ducted Fume Hood DID210, Ductless Fume Hood, Fume Hood.
For a quotation on the Ducted Fume Hood, contact Didac Scientific.
