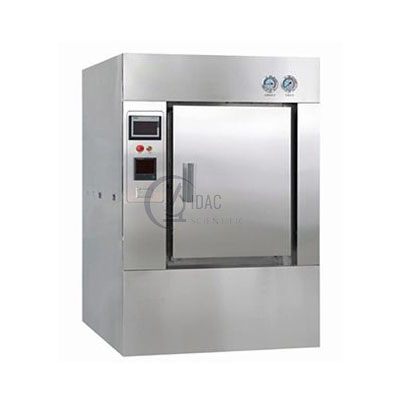

Large Capacity Pulse Vacuum Autoclave Manufacturer,Supplier and Exporter in Uk
Product Code : DS-A-10038
Quick Answer: The Large Capacity Pulse Vacuum Autoclave is offered in 2000L, 2500L and 3000L capacities with a 304 stainless steel chamber and double motor-driven sealing doors. It handles textiles, metal utensils, filters, glassware, animal cages and feed, and media in open containers.
Last updated: October 2026
Key Features
- Double layer main body with rounded chamber corners
- Double motor-driven sealing door using compressed air; 304 stainless steel door
- Safety interlock and double door interlock
- PLC control with micro-computer touch screen and three levels of password protection
- Micro needle printer outputs pressure, temperature, time and F0 value, with curves
- Water ring type vacuum pump
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 2000L, 2500L, 3000L |
| Chamber size (W x D x H) | 1700 x 1000 x 1200 mm, 2100 x 1000 x 1200 mm, 2500 x 1000 x 1200 mm |
| Chamber material | 304 stainless steel |
| Design pressure | 0.245 MPa |
| Working pressure | 0 to 0.22 MPa |
| Design temperature | 139 °C |
| Working temperature | 105 to 134 °C |
| Temperature precision | ≤0.5 °C |
| Heat uniformity | ≤±1 °C |
| Compressed air | 0.5 to 0.8 MPa |
| Power consumption | 5.5 kW, 6.5 kW |
| Power supply | AC380V, 50Hz |
| Gross weight | 2800 kg, 3000 kg, 3300 kg |
About This Product
The Large Capacity Pulse Vacuum Autoclave is built for large loads such as textiles, metal utensils, filters, glassware, animal cages and feed, and liquid media held in open containers. Control runs through a PLC with a micro-computer touch screen. A dual core temperature transmitter handles system temperature and process recording, while separate pressure transmitters serve the jacket and the chamber.
Frequently Asked Questions
Q1. What capacities does the Large Capacity Pulse Vacuum Autoclave come in?
2000L, 2500L and 3000L, with chamber widths of 1700 mm, 2100 mm and 2500 mm.
Q2. What does the printer record?
The micro needle printer outputs pressure, temperature, time and F0 value, along with other parameters and curves, in real time.
