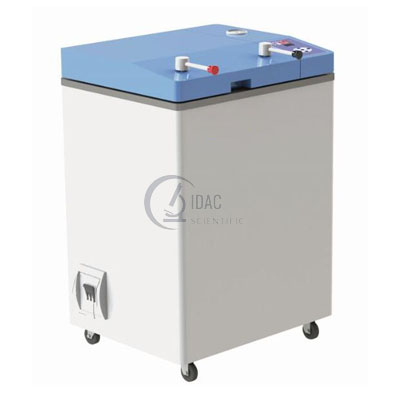

Flip-open Door Type Vertical Autoclave Manufacturer,Supplier and Exporter in Uk
Product Code : DS-A-10033
Quick Answer: The Flip-open Door Type Vertical Autoclave has a flip-open door with spring booster and fixed programmes for dressings, wrapped and unwrapped equipment, rubber and liquid. It is offered in 30L, 50L, 75L and 100L capacities.
Last updated: October 2026
Key Features
- Flip-open door with spring booster
- Mechanical safety interlock
- LED shows inner temperature, time and error codes
- Automatic steam exhaust
- Radial self-expanding silicone rubber seals
- Optional printer for recording process data
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 30L, 50L, 75L, 100L |
| Chamber size (Φ x L) | 385 x 412 mm, 385 x 515 mm, 385 x 715 mm, 385 x 915 mm |
| Chamber material | Polished SUS304 medical stainless steel |
| Max pressure | 0.3 MPa |
| Rated working pressure | 0.22 MPa |
| Max temperature | 150 °C |
| Working temperature range | 105 to 134 °C |
| Temperature accuracy | ±0.1 °C |
| Timing range | 0 to 999 min |
| Dynamic pulse exhaust | 0 to 9 times |
| Power supply | 220V, 50/60Hz |
| Power consumption | 2.8 kW to 4.5 kW |
| Gross weight | 100 kg to 125 kg |
About This Product
This vertical autoclave is intended for laboratories, universities and similar institutes that need to process temperature-resistant solids and liquids. It runs on distilled or demineralised water, and stainless steel baskets are supplied as standard accessories.
Frequently Asked Questions
Q1. What water does the Flip-open Door Type Vertical Autoclave need?
It requires distilled water or demineralised water.
Q2. What happens if the water level is too low?
Heating stops and an error code is shown on the screen.
Related: Autoclaves, Hand Wheel Type Vertical Autoclave, Hand Wheel Vertical Pulse Vacuum Autoclave.
For a quotation on the Flip-open Door Type Vertical Autoclave, contact Didac Scientific.
