Power Tiller Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11528

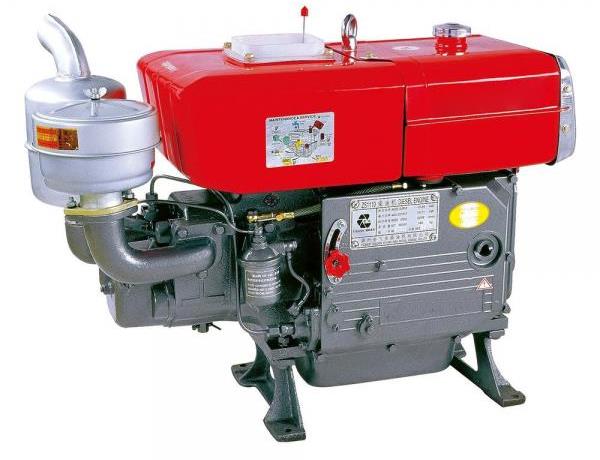

Quick Answer: The Power Tiller is driven by a single cylinder, water-cooled, horizontal 4-stroke diesel engine with a continuous output of 13.24 kW (18 hp) and a hand crank start.
Last updated: October 2026
Key Features
- Single cylinder, water-cooled, horizontal, 4-stroke engine
- Direct injection combustion system
- Continuous output 13.24 kW (18 hp), maximum 14.71 kW (20 hp)
- Started by hand crank
- Fuel tank 12 l, water tank 15 l, lubricating oil 4 l
- Net weight 180 kg, gross weight 195 kg
Technical Specifications
| Specification | Value |
|---|---|
| Engine type | Single cylinder, water-cooled, horizontal, 4-stroke |
| Bore x stroke | 110x115 mm |
| Speed | 2200 rpm |
| Continuous output | 13.24 kW / 18 hp |
| Maximum output | 14.71 kW / 20 hp |
| Combustion system | Direct injection |
| Specific fuel consumption | 244.8 g/kW.h |
| Starting method | Hand crank |
| Lubricating oil capacity | 4 l |
| Water tank capacity | 15 l |
| Fuel tank capacity | 12 l |
| Net weight | 180 kg |
| Gross weight | 195 kg |
| Overall dimensions (L x W x H) | 920x440x750 mm |
About This Product
To start the Power Tiller by hand, the control handle is pulled up to the maximum throttle position, the fuel tank switch is opened and the decompression handle is turned to its decompression position. The operator then swings the crankshaft quickly with the start handle and puts the decompression handle down once the injector is heard, and the diesel engine starts. Export supply of the Power Tiller can be arranged to laboratories and schools in Japan, Mauritania, Bosnia and Herzegovina, Slovenia, and Moldova.
Frequently Asked Questions
Q1. How is the Power Tiller started?
It is started by hand crank. With the throttle fully open, the fuel tank switch on and the decompression handle set, the crankshaft is swung quickly with the start handle and the decompression handle is put down when the injector sounds.
Q2. What are the tank capacities of the Power Tiller?
The fuel tank holds 12 l, the water tank 15 l and the lubricating oil capacity is 4 l.
Related: Engineering Equipment, Power Thrasher, 4-Stock Petrol Engine (Model).
For a quotation on the Power Tiller, contact Didac Scientific.
