Inside Micrometer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11543
Quick Answer: The Inside Micrometer measures the inner diameter of holes and the size of slots over a range of 5-30 mm, with 0.01 mm graduation and accuracy, a ratchet stop and carbide measuring faces.
Last updated: October 2026
Key Features
Measuring range 5-30 mm (0.2-1.18 inch)
Graduation and accuracy 0.01 mm
Ratchet stop
Carbide measuring faces
Radially ground and hardened anvil
Stainless steel, anti-rust with reduced glare
Technical Specifications
Specification
Value
Measuring range
5-30 mm / 0.2-1.18 inch
Graduation
0.01 mm
Accuracy
0.01 mm
Material
Stainless steel
Measuring faces
Carbide
Size
13 x 5 x 2 cm (5.12 x 1.97 x 0.79 inch)
About This Product

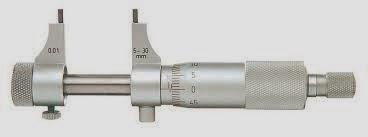

Unlike an outside micrometer, the inside micrometer has no frame; its measuring faces are placed inside a hole or slot to measure the diameter or width. The ratchet stop is used when closing on the measurement, and readings are taken to 0.01 mm across the 5-30 mm range. Export supply of the Inside Micrometer can be arranged to laboratories and schools in Maldives, Saudi Arabia, Morocco, Lebanon and France.
Frequently Asked Questions
Q1. What is the range of the Inside Micrometer? It measures 5-30 mm (0.2-1.18 inch) with a graduation and accuracy of 0.01 mm.
