Hydraulic Jack Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11520

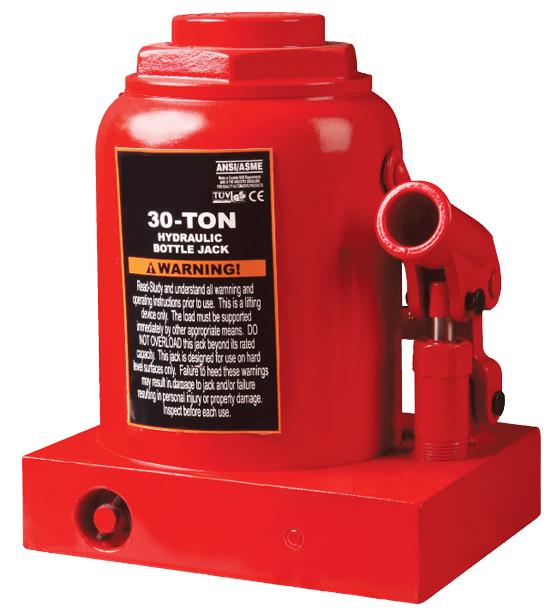

Quick Answer: The Hydraulic Jack is an alloy steel lifting jack with a safety valve, rated 11-30 Ton, with a close height of 210mm and an open height of 410mm.
Last updated: October 2026
Key Features
11-30 Ton with safety valve
Close height 210mm, open height 410mm, travel 200mm
Operates in vertical or horizontal positions
Hard cast steel base and heavy duty saddle
Heat-treated, large diameter extension screw for height adjustment
2-piece handle and baked paint finish
Technical Specifications
Specification
Value
Capacity
11-30 Ton
Close height
210mm
Open height
410mm
Travel
200mm
Net weight
4-11kg
Material
Alloy steel
About This Product
The Hydraulic Jack is used for lifting in automotive, truck, farm, industrial and construction work, and it can operate in a vertical or horizontal position. The load rests on a heavy duty saddle, and the extension screw extends the range so the starting height can be adjusted. The 2-piece handle is used to raise the jack.
Frequently Asked Questions
Q1. How far does the Hydraulic Jack lift? It has a close height of 210mm, an open height of 410mm and a travel of 200mm.
Q2. Can the Hydraulic Jack be used on its side? Yes, it operates in vertical or horizontal positions.
