Arc Welding Set Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11526

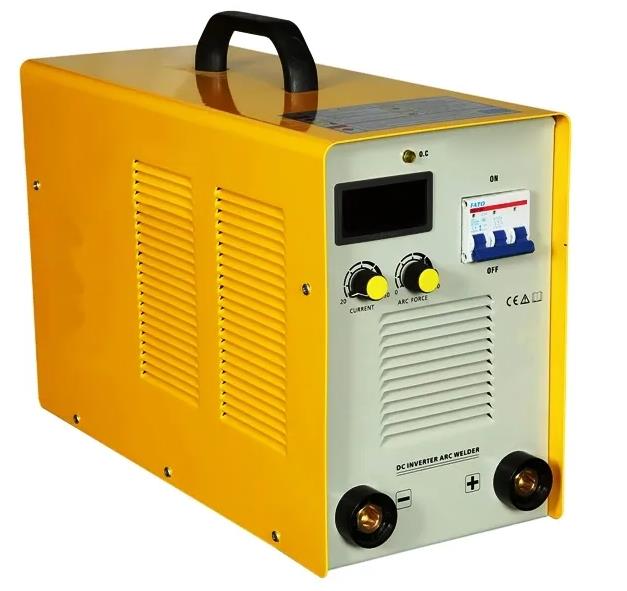

Quick Answer: The Arc Welding Set is a portable electric arc welding machine using IGBT inverter technology, with an output current of 10A-200A and an LCD display. It comes with an electrode holder, earth clamp, wire brush and helmet.
Last updated: October 2026
Key Features
IGBT inverter technology with an LCD display
Output current 10A-200A, duty cycle 200A@60%
Takes electrodes of 1.6mm-5.0mm diameter
Stable arc with small spatter
Self-protection when over-voltage or over-current happens
Electrode holder and earth clamp with cables, wire brush and helmet included
Technical Specifications
Specification
Value
Technology
IGBT inverter
Input voltage
A/C 220V-240V
Frequency
50/60 Hz
Output current
10A-200A
Duty cycle
200A@60%
Display
LCD
No-load voltage
70V
Max. output current
200A
Electrode diameter
1.6mm-5.0mm
About This Product
The Arc Welding Set is a light, portable machine for electric arc welding. It works with acid or alkali type electrodes, can weld from down to up with fibre electrodes, and compensates for voltage fluctuation so it can work continuously. If over-voltage or over-current happens, it protects itself.
Frequently Asked Questions
Q1. What electrodes can the Arc Welding Set use? It takes electrodes of 1.6mm-5.0mm diameter and suits acid or alkali types.
Q2. What is supplied with the Arc Welding Set? It comes with an electrode holder with cable, an earth clamp with cable, a wire brush and a helmet.
