Parallelogram Law of Forces Apparatus Manufacturer,Supplier and Exporter in Uk
Product Code : DS-LE-10836

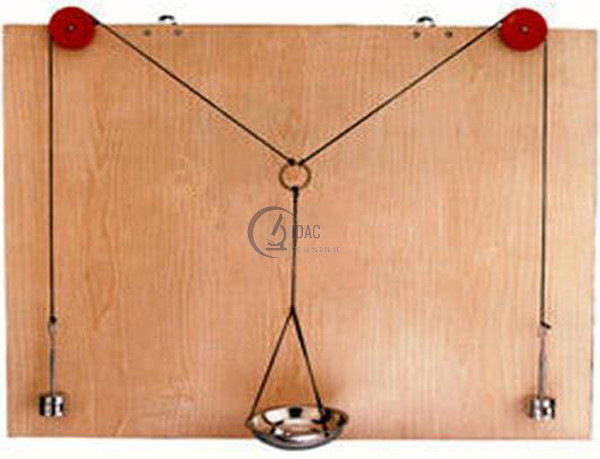

Quick Answer: The Parallelogram Law of Forces Apparatus is a 750 x 600 mm wooden drawing board with wall brackets and two pulleys of min 50 mm diameter, for parallelogram and polygon of forces experiments.
Last updated: October 2026
Key Features
Drawing board 750 x 600 mm, fitted with brackets for fixing to a wall
Two pulleys, min 50 mm diameter, clamp pattern
Clear space left around the edges for attaching pulleys
Supplied with pulleys and cords; masses not included
Two threads for hanging slotted weights
Technical Specifications
Specification
Value
Board
Wooden, 750 x 600 mm
Pulleys
Two, min 50 mm diameter, clamp pattern
Mounting
Brackets for fixing to a wall
Supplied
Pulleys and cords, without masses
About This Product
The Parallelogram Law of Forces Apparatus is used to study the relation between forces acting at a point. Slotted weights hang from threads passing over the pulleys, and the forces are drawn out on the board as a parallelogram or polygon of forces.
Frequently Asked Questions
Q1. Are masses included with the Parallelogram Law of Forces Apparatus? No. It is supplied with pulleys and cords, without masses, so slotted weights are needed separately.
