AC Circuit / Network Trainer Manufacturer,Supplier and Exporter in UK

Product Code : DS-EE-11487
Didac Scientific is a leading AC Circuit / Network Trainer Manufacturer,and suppliers in India, AC Circuit / Network Trainer Manufacturer,and suppliers in South Africa, AC Circuit / Network Trainer Algeria (Algiers), AC Circuit / Network Trainer Angola (Luanda), AC Circuit / Network Trainer Argentina (Buenos Aires), AC Circuit / Network Trainer Armenia (Yerevan), AC Circuit / Network Trainer Australia (Canberra), AC Circuit / Network Trainer Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Technical Features:-

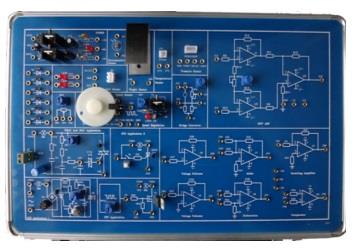

• Experiment Board for analysis of the application of various electronic components in AC circuits and the use of DC motors

• It contains all the pre-assembled electronic components needed to construct the experiment circuits and divided into functional circuit blocks which can be interconnected and modified by means of supplied jumpers and connection cables

• Printed circuit board with protective treatment and mimic diagram

• 2 mm sockets for test points and connections

• Jumpers for quick circuit modification

• 8-pole female DIN connector for power supply unit

• Fault simulation

Training Programs:-

• Magnetic fields;

• Electrical and electromagnetic fields;

• The capacitive effect and the capacitors: the energy storage, the current as a function of the voltage applied to a capacitor;

• The inductive effect and the inductors: internal resistance measurement and experimental test of an inductor;

• AC resistive and capacitive circuits: the impedance as a function of the frequency. Verifying the voltage and current phase shift in a condenser;

• AC inductive circuits: the voltage and current phase shift in an inductance, voltage and current with sinusoidal input and the reactance calculation of a coil;

• The RLC circuit: the concept of circuit impedance, current and voltage measurement in RC, RL and RLC circuits;

• Series and parallel resonance: the resonant frequency measurement in parallel and series circuits, the Q factor of a series resonant circuit;

• AC power: active, reactive and apparent power; The transformer: no-load and under load tests and transformer ratio measurement;

• The autotransformer;

• DC electrical motors: the speed as a function of the applied armature voltage, and the current as a function of the applied load;

• The electrical motor as an electrical generator.

• Type : Pannel

• Power Source: 220V ~240V AC 50 Hz, 1 Phase

• Standard accessories with printed operation manual
