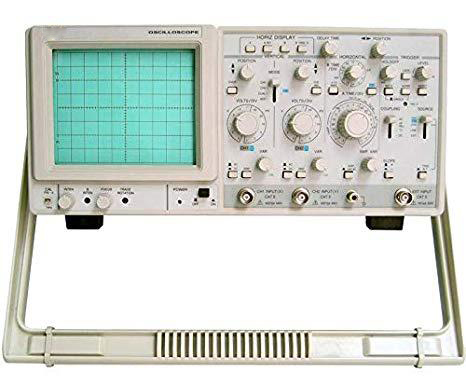

Analog Oscilloscope, Dual Trace

Product Code : DS-EE-11480
Didac Scientific is a leading Analog Oscilloscope, Dual Trace Manufacturer,and suppliers in India, Analog Oscilloscope, Dual Trace Manufacturer,and suppliers in South Africa, Analog Oscilloscope, Dual Trace Algeria (Algiers), Analog Oscilloscope, Dual Trace Angola (Luanda), Analog Oscilloscope, Dual Trace Argentina (Buenos Aires), Analog Oscilloscope, Dual Trace Armenia (Yerevan), Analog Oscilloscope, Dual Trace Australia (Canberra), Analog Oscilloscope, Dual Trace Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Description:-
• 1mV high vertical amplifier sensitivity.
• User can use a Zoom display to hold up the second sweep signal thanks to the separate second time base capability.
• The 2 channel 4 traces display, trigger level lock function and the use of digital control switch.
• 50MHz Bandwidth, Dual Channel
• Delayed Sweep
• Built-In Delay Line
• TV Synchronization
• CH1 Output
• Z-Axis Modulation Input
• ALT Triggering Function
• Hold Off Function
• Trigger Level Lock Function

Technical Features:-
• Bandwidth: min. 20MHz, Dual channel
• Expanded vertical sensitivity to 20V/div
• High sensitivity: 1mV/div
• ALT triggering function
• 10 times sweep magnification
• 6-inch rectangular with internal graticule 8 x 10div (1div=1cm)
• Accelerating voltage: 2kV
• Illumination: Front panel control
• Rise time: ≤17.5ns/≤50ns
• Input impedance: 1MΩ±3%
• Max. input voltage: 400V (DC + ACp-p) at 1kHz
• Input coupling: AC, DC,GND
• Vertical operation mode: CH1, CH2, ALT, CHOP, ADD, CH2 INV
• Sweep magnification: 10 times
• Max sweep time: 20ns/div
• Trigger mode: AUTO(TV-V),NORM,TV-H, LEVER LOCK
• Trigger source: CH1, CH2, ALT, LINE, EXT, VERT
• Trigger coupling: AC
• Trigger slope: "+" or "-"
• Sensitivity: 5mV~5V/div, ±4%
• Phase error: ≤3 DC ~ 50kHz
• Power source: 220VAC, 50Hz, 1 Phase
• Standard accessories with printed operation manual
