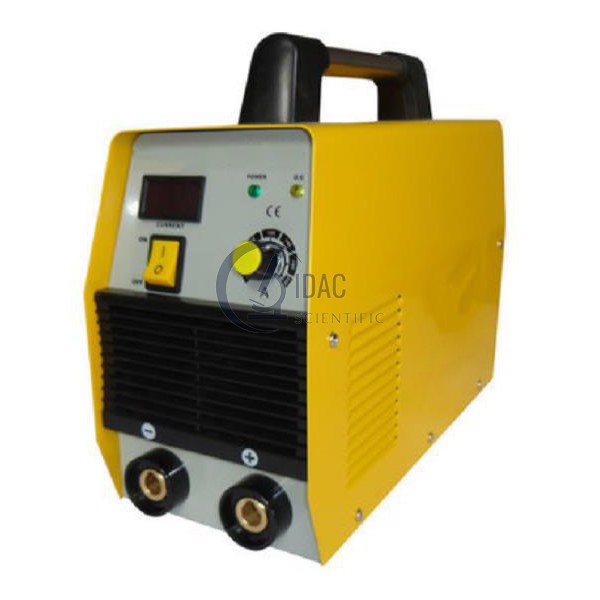

Portable Arc Welding M/C Manufacturer,Supplier and Exporter in Uk
Product Code : DS-LE-10821
Quick Answer: The Portable Arc Welding M/C is an arc welder with a current adjustable range of 100-500A that takes 2.5-8mm electrodes. It is supplied with a 20 feet cable, earth clamp, electrode holder, electrode, brush and mask.
Last updated: October 2026
Key Features
Auto-compensation against power fluctuation for a stable output welding current
Auto-protection against over-voltage and over current
Powerful arc-force
Welds with basic and acid electrodes
For low carbon steel, medium carbon steel and alloy steel
Technical Specifications
Specification
Value
Input voltage
220/380, 1 phase/ 3 phase, 50Hz
Rated input capacity
40kVA
No-load voltage
Min 50v
Current adjustable range
100-500A
Rated duty cycle
20 percent
Usable electrode
2.5-8mm
About This Product
The Portable Arc Welding M/C is used for arc welding low carbon steel, medium carbon steel and alloy steel with basic or acid electrodes. Auto-compensation keeps the output welding current stable when the supply fluctuates, and auto-protection acts against over-voltage and over current.
Frequently Asked Questions
Q1. What is supplied with the Portable Arc Welding M/C? It comes with a 20 feet cable, earth clamp, electrode holder, electrode, brush and mask.
Q2. What electrode sizes can the Portable Arc Welding M/C use? Electrodes from 2.5-8mm can be used, of basic or acid type.
