Spherometer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-LE-10834

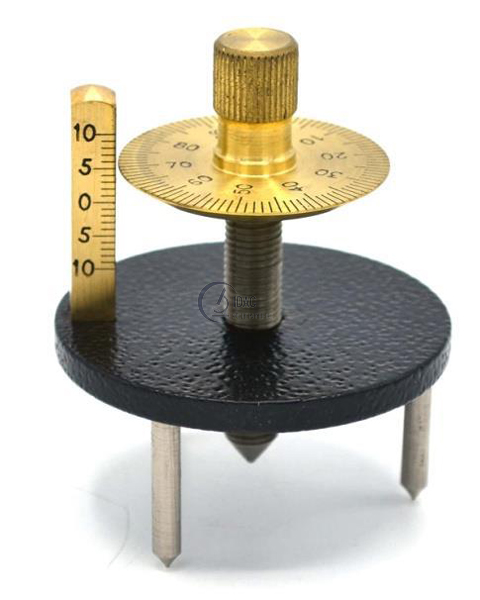

Quick Answer: The Spherometer measures the curvature of a round surface, with three steel legs 40mm apart and a vertical measuring graduation of 0.01mm.
Last updated: October 2026
Key Features
Three steel legs set 40mm apart
Circular metal table, min 50 mm diameter
Vertical measuring graduation of 0.01mm
Steel screw thread working in a long adjustable bearing
Circular scale on the thread and vertical scale on the table
Technical Specifications
Specification
Value
Leg spacing
40mm
Graduation
0.01mm
Table
Circular metal, min 50 mm diameter
Legs
Three, steel
About This Product
The Spherometer is typically used in physics labs to measure the curvature of lenses, from which focal length and other geometrical optics values are found. The three legs rest on the surface, the screw is turned until it touches, and readings are taken from the circular scale and the vertical scale.
Frequently Asked Questions
Q1. What is the Spherometer used for? It measures the curvature of a round surface, typically a lens in physics labs, to help find focal length and other optical measurements.
