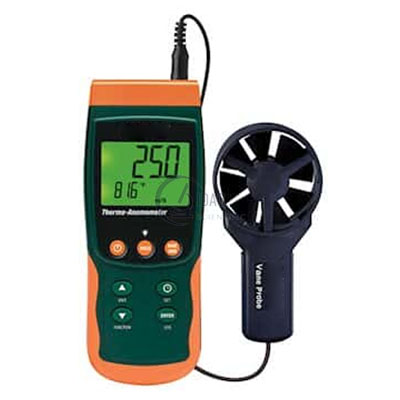

Data Logging Vane Thermoanemometer, Heavy-Polymer Vane Manufacturer,Supplier and Exporter in Uk
Product Code : DS-AAM-10619
Quick Answer: Data Logging Vane Thermoanemometer, Heavy-Polymer Vane shows air velocity and temperature together on a large 9999-count dual LCD. It measures air velocity to 4930 ft/min and stores 20M readings via 2G SD card.
Last updated: October 2026
Key Features
- Air velocity to 4930 ft/min and air temperature to 122°F (50°C)
- Type K/J thermocouple input for temperatures to 2372°F (1300°C)
- Adjustable data sampling rate: 1 to 3600 seconds
- Stores 99 readings manually and 20M readings via 2G SD card
- 2% velocity accuracy from a low friction ball bearing vane wheel
- Record/recall min, max, data hold and auto power off
Technical Specifications
| Specification | Value |
|---|---|
| Air velocity | To 4930 ft/min |
| Air temperature | To 122°F (50°C) |
| Thermocouple input | Type K/J, to 2372°F (1300°C) |
| Velocity accuracy | 2% |
| Sampling rate | 1 to 3600 seconds |
| Display | 9999 count dual LCD |
| Memory | 99 readings manually; 20M readings via 2G SD card |
About This Product
The meter is used to record air velocity and temperature over time, with the vane wheel held in the airstream on its cable. External thermocouples extend temperature readings well above the range of the air sensor. Logged data is saved to the SD card at a sampling rate set between 1 and 3600 seconds. The Data Logging Vane Thermoanemometer, Heavy-Polymer Vane is available for supply within the United Kingdom and for export to Lebanon, Equatorial Guinea, Guinea, Kazakhstan, Jamaica and Belarus.
Frequently Asked Questions
Q1. What is the highest temperature the Data Logging Vane Thermoanemometer can measure?
Air temperature is measured to 122°F (50°C). With an external type K or J thermocouple, measurements reach 2372°F (1300°C).
Q2. How many readings can it store?
It stores 99 readings manually and 20M readings via a 2G SD card.
