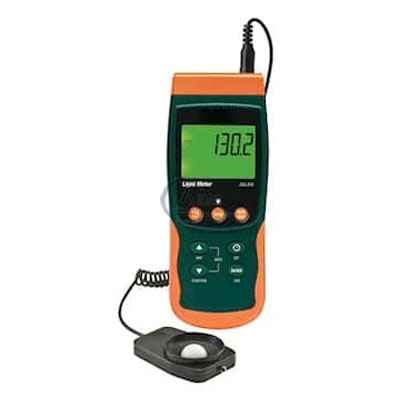

Light Meter with Data Logging and SD Card Manufacturer,Supplier and Exporter in Uk
Product Code : DS-HP-10726
Quick Answer: Light Meter with Data Logging and SD Card takes cosine- and colour-corrected light measurements and logs date and time stamped readings to an SD card, with an adjustable sampling rate of 1 to 3600 seconds.
Last updated: October 2026
Key Features
Cosine- and colour-corrected measurements
Silicon photo diode with spectral response filter
Adjustable data sampling rate of 1 to 3600 seconds
Stores 99 readings manually and 20 M readings via 2G SD card
Type K and J thermocouple input for high temperature measurements
Large backlit LCD, min/max record/recall, data hold and zero offset
Technical Specifications
Specification
Value
Sampling rate
1 to 3600 seconds
Memory
99 readings manually; 20 M readings via 2G SD card
Sensor
Silicon photo diode with spectral response filter
Thermocouple input
Type K and J
About This Product
The meter is used for light monitoring where readings need to be logged over time, with each reading date and time stamped on the SD card for transfer to a PC. A thermocouple can be added for temperature measurement, and the zero offset allows relative readings.
Frequently Asked Questions
Q1. Can the Light Meter with Data Logging also measure temperature? Yes. It accepts any type J or K thermocouple for temperature measurement.
Q2. How are logged readings stored? Readings are date and time stamped and stored on an SD card for transfer to a PC, with 20 M readings via a 2G SD card plus 99 readings stored manually.
