Potentiometer 4 Wire Manufacturer,Supplier and Exporter in Uk
Product Code : DS-P-11123

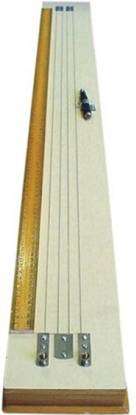

Quick Answer: The Potentiometer 4 Wire has four constantan wires of 24 swg stretched on a polished wooden base and connected in series with brass strips. A box wood meter scale runs along one edge, and a jockey is supplied.
Last updated: October 2026
Key Features
Four constantan wires, 24 swg
Wires connected in series with brass strips
Polished wooden base
Two 4mm socket terminals
Box wood meter scale along one edge
Supplied with jockey
Technical Specifications
Specification
Value
Wires
Four, constantan, 24 swg
Base
Polished, wooden
Terminals
Two, 4mm socket
Scale
Box wood meter scale
About This Product
The four wires give a long length of constantan in a compact base, and the meter scale along the edge lets each balance length be read as the jockey is moved along the wire. Connections are made at the two 4mm socket terminals.
Frequently Asked Questions
Q1. What wire is used in the Potentiometer 4 Wire? It uses four constantan wires of 24 swg, connected in series with brass strips.
