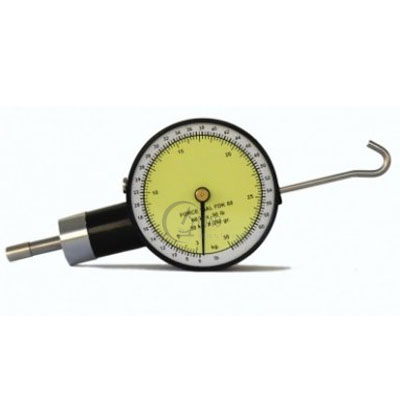

Wagner Force Dials Manufacturer,Supplier and Exporter in Uk
Product Code : DS-DASGAGM-10488
Quick Answer: The Wagner Force Dials are compact dial force gauges for tension and compression, with a 2.25 in. dial and a weight of 10 oz. They can be used handheld or mounted on a test stand.
Last updated: October 2026
Key Features
- Dual graduations for decimal pounds/grams and ounce/grams
- Accuracy ±2 graduations below 2500 g and ±1 graduation above 2500 g
- Maximum reading held automatically, with push-button return to zero
- Push and pull from opposite ends
- Mounting holes for test stand use
- Plunger movement approximately 0.4" (10 mm) full scale deflection
Technical Specifications
| Specification | Value |
|---|---|
| Dial diameter | 2.25 in. |
| Weight | 10 oz |
| Accuracy | ±2 graduations below 2500 g; ±1 graduation above 2500 g |
| Plunger movement | Approximately 0.4" (10 mm) full scale deflection |
| Case | High-impact plastic |
| Dial | Aluminium |
| Spring | Galvanised steel |
About This Product
The force dial reads tension from one end and compression from the other, so one gauge handles push and pull. The maximum reading is held on the dial until a push-button returns the pointer to zero. Mounting holes let it be fixed to a test stand when it is not held in the hand.
Frequently Asked Questions
Q1. What is the accuracy of the Wagner Force Dials?
Accuracy is ±2 graduations below 2500 g and ±1 graduation above 2500 g.
Q2. How is the maximum reading reset on the Wagner Force Dials?
The maximum reading is held automatically, and a push-button returns the pointer to zero.
Q3. What scales do the Wagner Force Dials show?
They have dual graduations for decimal pounds/grams and ounce/grams.
