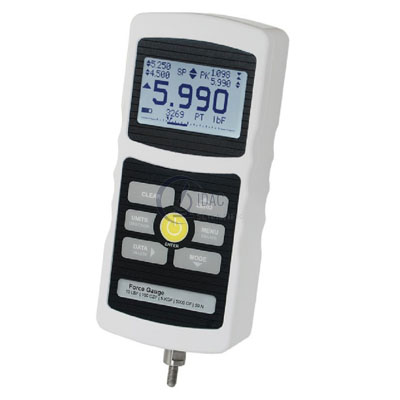

Professional Digital Force Gauges Manufacturer,Supplier and Exporter in Uk
Product Code : DS-DASGAGM-10483
Quick Answer: The Professional Digital Force Gauges measure tension and compression up to 500 lb (2500 N), with a 14,000 Hz sampling rate and ±0.1% accuracy for rapid testing.
Last updated: October 2026
Key Features
- High-speed 14,000 Hz sampling rate with ±0.1% accuracy
- Continuous data capture of up to 5,000 data points, downloadable to a PC
- Sample break detection that automatically zeroes, saves and outputs
- 1st / 2nd peak detection
- Averaging, external trigger, real-time and peak modes
- USB, RS-232 and analogue outputs, plus password protection
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | Up to 500 lb (2500 N) |
| Sampling rate | 14,000 Hz |
| Accuracy | ±0.1% |
| Data capture | Up to 5,000 data points |
| Outputs | USB, RS-232, analogue |
| Units | Five units of measurement, plus COF and user-defined units |
About This Product
These gauges are made for demanding tension and compression measurements where fast sampling matters. When a sample breaks, the gauge can automatically zero, save and output the reading, and data captured at up to 14,000 Hz can be downloaded to a PC. Programmable set points with audiovisual indicators, together with a programmable footswitch command string, support rapid repeat testing.
Frequently Asked Questions
Q1. What is the capacity of the Professional Digital Force Gauges?
They measure tension and compression up to 500 lb (2500 N).
Q2. How fast do the Professional Digital Force Gauges sample?
The sampling rate is 14,000 Hz, with ±0.1% accuracy.
Q3. Can data be transferred from the Professional Digital Force Gauges?
Yes. Continuous data capture of up to 5,000 data points can be downloaded to a PC, and USB, RS-232 and analogue outputs are provided.
Related: Density and Specific Gravity and Gloss Meters, Advanced Digital Force Gauges, High Capacity Digital Force Gauges, Precision Digital Force Gauges.
For a quotation on the Professional Digital Force Gauges, contact Didac Scientific.
