Platelet Incubators Manufacturer,Supplier and Exporter in Uk
Product Code : DS-I-10205
Quick Answer: The Platelet Incubators hold 22±2 ℃ with a single agitator oscillating at 60±5cycles/minute over a 50mm amplitude. Models take up to 10 or 20 blood bags of 450ml.
Last updated: October 2026
Key Features
Microprocessor temperature control with a high accuracy sensor
Single agitator: 60±5cycles/minute, 50mm amplitude
UV lamp for disinfection, interlocked with the door
Double-layer glass observation window filled with inert gas
Audio and visual alarms for high/low temperature, sensor error, power failure, door ajar and low battery
Power on/off switch
Technical Specifications
Specification
Value
Temperature
22±2 ℃
Accuracy
±0.1 °C
Oscillation
60±5cycles/minute
Amplitude
50mm
Trays
5 or 10
450ml blood bags
Max.10pcs or Max.20pcs
Refrigerant
R134a CFC free
Power supply
AC220V±10%, 50/60Hz
Consumption
101W or 180W
Internal size (W*D*H)
427*470*467 or 607*535*657 mm
External size (W*D*H)
540*605*960 or 720*670*1150 mm
Net/gross weight
98/130kg or 110/150kg
About This Product

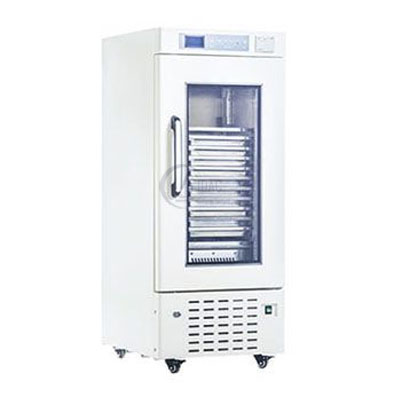

The Platelet Incubators keep 450ml blood bags at 22±2 ℃ on trays moved by a single agitator. A high efficiency refrigeration system gives fast cooling and even temperature inside, and the double-layer glass window, filled with inert gas, lets the trays be seen without opening the door. The UV lamp for disinfection is interlocked with the door.
Frequently Asked Questions
Q1. How many blood bags do the Platelet Incubators hold? The 5-tray model holds up to 10pcs and the 10-tray model up to 20pcs of 450ml blood bags.
