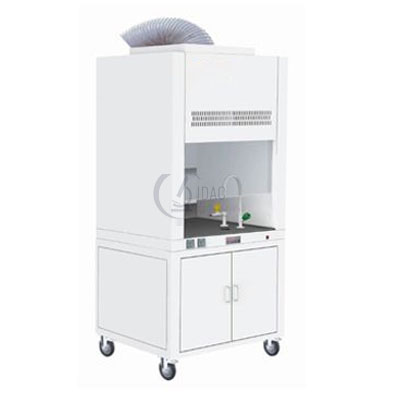

Fume Hood DID209 Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10127
Quick Answer: The Fume Hood DID209 has a double-layer structure of 1.2 mm sheet metal with melamine board inside, a motorised front glass window and 9 air speed levels. It comes in four widths, from 1000 to 1800mm.
Last updated: October 2026
Key Features
Double-layer structure: 1.2 mm sheet metal outside, melamine board inside
Motorised front glass window
Built-in centrifugal blower, 9 air speed levels
Microprocessor control with LED display
UV lamp fitted
Protection class I, IP 20
Technical Specifications
Specification
Value
External size (W x D x H)
1000 x 750 x 2320mm; 1200 / 1500 / 1800 x 800 x 2345mm
Internal size (W x D x H)
820 x 620 x 750mm; 1020 / 1320 / 1620 x 670 x 750mm
Work surface height
850mm
Max opening
520mm / 570mm
Air velocity
0.3 to 0.8m/s
Protection
Class I, IP 20
Noise
≤60dB
About This Product
The Fume Hood DID209 pairs a sheet metal outer surface with a melamine board lining, and draws air through a built-in centrifugal blower set across 9 levels. The work surface sits at 850mm, with a maximum opening of up to 570mm.
Frequently Asked Questions
Q1. What is the Fume Hood DID209 made of? A double-layer structure with a 1.2 mm sheet metal surface and melamine board inside.
