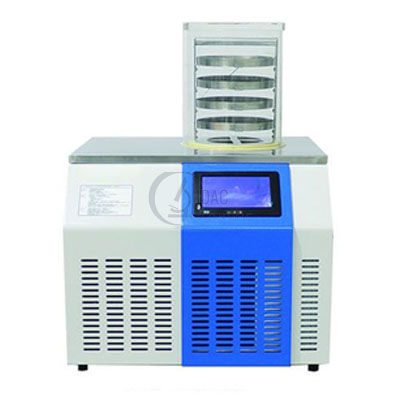

Table Top Freeze Dryer Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FD-10111
Quick Answer: The Table Top Freeze Dryer has a cold trap that reaches -56 °C or below, holds 9.5L and captures 3 Kg of water in 24h. It is offered with a standard or stoppering chamber, each with or without an 8 port manifold.
Last updated: October 2026
Key Features
- LCD touch screen with historical data inquiry
- USB interface for data transfer
- Large stainless steel ice condenser trap without an internal coil
- Cascade refrigeration
- Transparent drying chamber
- Adjustable stainless steel shelves; pre-freezing shelf doubles as a guide barrel
Technical Specifications
| Specification | Value |
|---|---|
| Types | Standard chamber, standard with 8 port manifold, stoppering chamber, stoppering with 8 port manifold |
| Freeze drying area | 0.12 m2 / 0.09 m2 |
| Trays | 4 / 3 |
| Cold trap temperature | ≤-56 °C |
| Cold trap capacity | 9.5L |
| Vacuum degree | Below 10 Pa |
| Water capture capacity | 3 Kg/24h |
| Total loading capacity (liquid) | 1.2L / 0.9L |
| Drying chamber size | Φ260 x 310mm / Φ260 x 450mm |
| Refrigerant | R600a+R290+R23 |
| Cooling system | Air cooling |
| Power supply | 220V/50Hz, 60Hz or 110V/60Hz, single phase |
| Power consumption | 1.3KW |
About This Product
The Table Top Freeze Dryer is used for heat-sensitive materials in the drug, biological products, chemical and food industries. Samples are freeze-dried under a vacuum below 10 Pa, with the cold trap collecting up to 3 Kg of water per 24h. Run data can be reviewed on the touch screen and copied out through the USB interface. Export supply of the Table Top Freeze Dryer can be arranged to laboratories and schools in Bahamas, India, Ecuador, Oman and Malta.
Frequently Asked Questions
Q1. How much liquid can the Table Top Freeze Dryer load?
1.2L in total on the 4-tray version and 0.9L on the 3-tray version, at 0.3L per shelf.
Q2. How many vials does it hold?
Up to 260 Φ22 vials, 480 Φ16 vials or 920 Φ12 vials, depending on version.
Related: Freeze Dryer, Vertical Freeze Dryer, Square Cabinet Type Polit Freeze Dryer.
For a quotation on the Table Top Freeze Dryer, contact Didac Scientific.
