Elisa Microplate Reader Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EMRAW-10108
Quick Answer: The Elisa Microplate Reader uses an 8 channel vertical light path with a 12V/20W halogen tungsten lamp, reading 400-800nm from 0 to 4.000Abs. Results show on an 8 inch colour LCD touch screen and can be printed directly.
Last updated: October 2026
Key Features
- 8 channel optical fibre measurement system
- Wavelength range 400-800nm, with up to 10 filters
- End point, two point, dynamics and single or dual wavelength test modes
- Three linear vibration plate functions, adjustable 0 to 255 seconds
- 8 inch colour LCD touch screen showing the whole plate
- Stores 200 groups of programmes and 100000 sample results
Technical Specifications
| Specification | Value |
|---|---|
| Lamp | 12V/20W halogen tungsten |
| Optical path | 8 channel vertical light path |
| Wavelength range | 400-800nm |
| Filters | Default 405,450,492,630nm; up to 10 |
| Reading range | 0 to 4.000Abs |
| Resolution | 0.001Abs |
| Accuracy | ≤±0.01Abs |
| Stability | ≤±0.003Abs |
| Repeatability | ≤0.3% |
| Vibration plate | Three functions, 0 to 255 seconds |
| Display | 8 inch colour LCD touch screen |
| Software memory | 200 groups of programmes, 100000 sample results, over 10 curve fitting equations |
| Power supply | AC110/220V ±10%, 50/60Hz |
| Gross weight | 15.5kg |

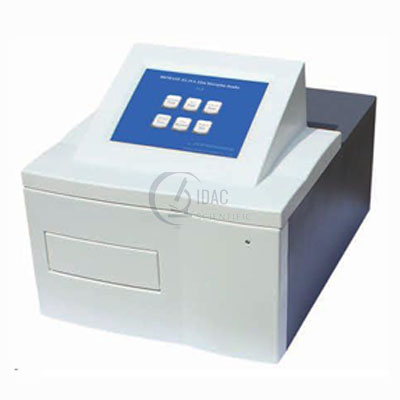

About This Product
The Elisa Microplate Reader measures absorbance across a plate through eight optical fibre channels, using end point, two point or dynamics methods at one or two wavelengths. A cut-off judgement formula can be set by the user, and an inhibition rate measurement module is included for food safety work. Results can be monitored on screen and printed directly. The Elisa Microplate Reader is available for supply within the United Kingdom and for export to Chile, Yemen, Estonia, Turkmenistan, Mauritius and Vietnam.
Frequently Asked Questions
Q1. What wavelengths can the Elisa Microplate Reader use?
400-800nm, with default filters and space for up to 10 filters.
Q2. How many results can it store?
Up to 100000 sample results and 200 groups of programmes.
Related: Elisa Microplate Reader and Washer, Elisa Microplate Washer, Automatical Microplate Washer.
For a quotation on the Elisa Microplate Reader, contact Didac Scientific.
