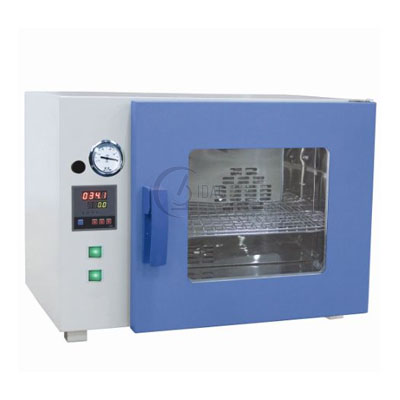

Vacuum Drying Oven Manufacturer,Supplier and Exporter in Uk
Product Code : DS-DO-10186
Quick Answer: The Vacuum Drying Oven dries samples under vacuum, with PID microprocessor temperature control and a vacuum degree below 133 Pa. Capacities run from 25L to 215L.
Last updated: October 2026
Key Features
- PID microprocessor temperature control with LED display
- Vacuum degree controlled automatically, with a digital display on some models
- Silicon rubber sealring holds a high vacuum in the chamber
- Polished stainless steel inner chamber and a tempered double-layer door
- Working program can be cycled for 99 times
- Chamber can be filled with inert gas at not higher than 0.1Mpa
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 25L, 50L, 90L or 215L |
| Temperature range | 50~200°C or 50~250°C |
| Temperature fluctuation | ±1°C |
| Vacuum degree | Below 133 Pa |
| Vacuum control | Automatic, with one vacuum meter or a microprocessor controller with digital display |
| Shelves | 1 pc, 2pcs or 3 pcs |
| Power consumption | 500W, 1400W, 1600W or 2200W |
| Power supply | AC110V/220V±10%,50/60Hz or AC220V±10%, 50/60Hz |
| Internal size (W*D*H) | 300*300*280, 420*350*370, 450*450*450 or 560*600*640 mm |
| External size (W*D*H) | 580*570*450, 710*590*530, 660*610*1400 or 760*720*1670 mm |
| Gross weight (kg) | 50, 106, 155 or 195 |
About This Product
The Vacuum Drying Oven heats samples in a sealed, polished stainless steel chamber held at a vacuum degree below 133 Pa. Temperature is set by PID control from 50~200°C, or 50~250°C on some models, and the vacuum degree is controlled automatically. The chamber can also be filled with inert gas at a pressure not higher than 0.1Mpa, and a working program can be cycled for 99 times. Export supply of the Vacuum Drying Oven can be arranged to laboratories and schools in Argentina, Lesotho, Bulgaria, Central African Republic and Turkey.
Frequently Asked Questions
Q1. Can inert gas be used in the Vacuum Drying Oven?
Yes. Inert gas can be filled in the chamber, at a pressure not higher than 0.1Mpa when filling.
Q2. What vacuum does the Vacuum Drying Oven reach?
The vacuum degree is below 133 Pa, held by a silicon rubber sealring and controlled automatically.
Related: Drying Oven, High Temperature Drying Oven, Constant-Temperature Drying Oven.
For a quotation on the Vacuum Drying Oven, contact Didac Scientific.
