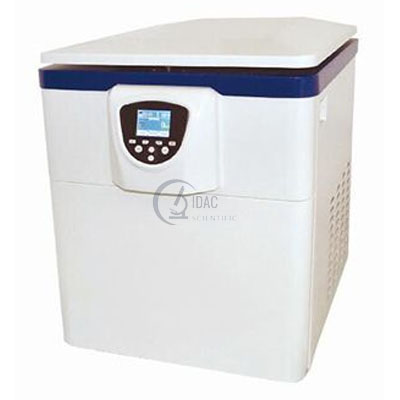

High Speed Refrigerated Centrifuge Manufacturer,Supplier and Exporter in Uk
Product Code : DS-C-10070
Quick Answer: The High Speed Refrigerated Centrifuge has a maximum capacity of 4 x 750ml and reaches 20600rpm (29400 x g). Its CFC-free refrigeration controls temperature from -20 to 40 °C to ±1 °C.
Last updated: October 2026
Key Features
- Max capacity 4 x 750ml; standard rotor 12 x 1.5/2.0ml
- Max speed 20600rpm, max RCF 29400 x g
- LCD shows set and actual parameters at the same time
- Over 20 selectable procedures and self-defined modes
- 10 levels of speed-up and speed-down control
- Automatic rotor identification and quiet motorised door lock
Technical Specifications
| Specification | Value |
|---|---|
| Max capacity | 4 x 750ml |
| Max speed | 20600rpm |
| Max RCF | 29400 x g |
| Standard rotor | 12 x 1.5/2.0ml |
| Speed precision | ±50rpm |
| Refrigeration | CFC-free compressor and control valve (R404a) |
| Temperature range | -20 to 40 °C |
| Temperature precision | ±1 °C |
| Drive | Frequency motor, micro control, direct drive |
| Timing range | 0 to 99 h 59 min |
| Noise | Below 65 dB |
| Power consumption | 2.0 kW |
| Power supply | AC220V, 50Hz |
| External size (W x D x H) | 710 x 560 x 770 mm |
| Net/gross weight | 160/218 kg |
About This Product
The High Speed Refrigerated Centrifuge handles large volumes, up to four 750ml loads, at high speed under temperature control. A direct-drive frequency motor with micro control runs the rotor, which is identified automatically, and a shock absorber keeps the motor running smoothly. Export supply of the High Speed Refrigerated Centrifuge can be arranged to laboratories and schools in Mozambique, Suriname, Honduras, New Zealand and Mongolia.
Frequently Asked Questions
Q1. What is the maximum capacity of the High Speed Refrigerated Centrifuge?
4 x 750ml, with a standard rotor of 12 x 1.5/2.0ml.
Q2. What protection is fitted?
Over-speed and over-temperature protection, imbalance detection and a shock absorber.
Related: Centrifuges, High Speed Refrigerated Centrifuge DID201, High Speed Refrigerated Centrifuge Machine, Large Capacity High Speed Refrigerated Centrifuge.
For a quotation on the High Speed Refrigerated Centrifuge, contact Didac Scientific.
