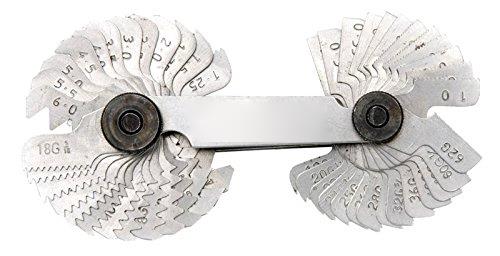

Screw Pitch Gauge Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11551
Quick Answer: The Screw Pitch Gauge is a folding stainless steel gauge with 51 leaves, used to size a fastener and choose the correct drill bit.
Last updated: October 2026
Key Features
51 leaves
Stainless steel
Folds away for easy storage
4-42 TPI
Measuring range 0.25-6.00 and 4-62 BSW
Dimensions 3.8 x 1 x 0.8 inches
Technical Specifications
Specification
Value
Leaves
51
Material
Stainless steel
Thread range
4-42 TPI
Measuring range
0.25-6.00; 4-62 BSW
Dimensions
3.8 x 1 x 0.8 inches
Weight
0.18 lbs
About This Product
Each leaf is matched against a thread to find its pitch, which shows which fastener size or drill bit is needed. The gauge folds away for easy storage. The Screw Pitch Gauge is available for supply within the United Kingdom and for export to Djibouti, Ghana, Papua New Guinea, Italy, Madagascar and Zimbabwe.
Frequently Asked Questions
Q1. How many leaves does the Screw Pitch Gauge have? It has 51 leaves covering 4-42 TPI, and folds away for easy storage.
