Circuit Boards Manufacturer,Supplier and Exporter in Uk
Product Code : DS-LE-11603

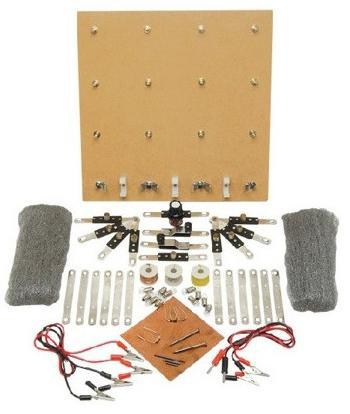

Quick Answer: The Circuit Boards kit consists of a baseboard, terminals, metal connection pillars and clip-on phosphor bronze connection strips, so a variety of circuits can be constructed quickly.
Last updated: October 2026
Key Features
- Baseboard with terminals and metal connection pillars
- Clip-on phosphor bronze connection strips held in place by their natural spring
- Flexible leads with 4 mm plugs and crocodile clips
- Bare copper wire 20 SWG and bare Eureka wire 34 SWG
- Mounted bell pushes, soft iron nails and pencil leads included
Technical Specifications
| Specification | Value |
|---|---|
| Leads with 4 mm plugs and crocodile clips | 2 |
| Leads with crocodile clips | 2 |
| Crocodile clips | 2 |
| Mounted bell pushes | 2 |
| Soft iron nails, 50 mm | 2 |
| Bare copper wire | 1 length, 20 SWG |
| Bare Eureka wire | 1 length, 34 SWG |
| Plastic covered flexible wire | 1 length |
| Circular hardboard disc, drilled | 1 |
| Pencil leads | 4 |
| Copper foil | 1 piece |
| Steel wool | 1 piece |
About This Product
The connection strips are flexed slightly and slipped over the pegs on the baseboard, where their natural spring holds them in position and keeps good electrical contact. This lets a variety of circuits be built and changed quickly. The supplied leads, wires, bell pushes, nails, pencil leads, copper foil and steel wool provide the parts for different circuit experiments.
Frequently Asked Questions
Q1. How do the connection strips on the Circuit Boards stay in place?
The phosphor bronze strips are flexed a little and slipped over the pegs on the baseboard, where their natural spring holds them in position and ensures good electrical contact.
Q2. Which wires come with the Circuit Boards kit?
One length each of bare copper wire 20 SWG, bare Eureka wire 34 SWG and plastic covered flexible wire, plus 2 flexible leads with 4 mm plugs and crocodile clips and 2 with crocodile clips.
Related: Lab Equipment - 2, Circuit Board, Ammeter, Electric Bells.
For a quotation on the Circuit Boards, contact Didac Scientific.
