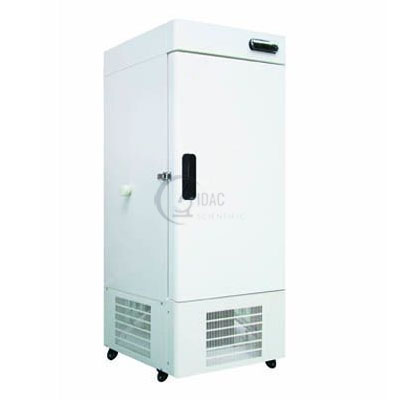

-86℃ Ultra-low Temperature Freezer-Vertical Type Manufacturer,Supplier and Exporter in Uk
Product Code : DS-RF-10176
Quick Answer: The -86°C Ultra-low Temperature Freezer-Vertical Type is a vertical freezer with a temperature range of -10~ -86 ℃ and 0.1 ℃ accuracy. It is listed in 100L, 540L and 398L capacities.
Last updated: October 2026
Key Features
- Temperature range -10~ -86 ℃ with 0.1 ℃ accuracy
- Microprocessor control with a large-screen LED display or an LCD touch screen
- Audio and visual alarms for temperature, system failure, door ajar, sensor failure, low voltage, filter blocking and power failure
- Direct refrigeration with a copper condenser and evaporator
- 100~155mm foaming insulation with VIP+
- Lockable door, inner doors and 4 casters
Technical Specifications
| Specification | Value |
|---|---|
| External size (W*D*H) | 1066*742*820, 840*918*1984 or 785*1041*1947 mm |
| Capacity | 100L, 540L or 398L |
| Temperature range | -10~ -86 ℃ |
| Temperature accuracy | 0.1 ℃ |
| Compressor | 1set or 2sets |
| Refrigerant | Mixture refrigerant |
| Internal material | SS304 |
| Chambers with inner door | 2 or 4 |
| Temperature test port | φ40mm, 1 or 2 |
| Consumption | 1000w or 1900w |
| Power supply | AC220V±10%, 50/60HZ |
| Gross weight | 140kg or 360kg |
About This Product
This ultra-low temperature freezer runs from -10~ -86 ℃ under microprocessor control, with a large-screen LED display or an LCD touch screen depending on model. Each model has chambers behind inner doors, a lockable outer door and a φ40mm temperature test port. The cabinet uses two-time foaming with 100~155mm of insulation and VIP+, and stands on 4 casters. Export supply of the -86°C Ultra-low Temperature Freezer-Vertical Type can be arranged to laboratories and schools in Angola, Estonia, Grenada, Laos, Seychelles and Uruguay.
Frequently Asked Questions
Q1. What temperature range does the vertical ultra-low temperature freezer cover?
It runs from -10~ -86 ℃, with a temperature accuracy of 0.1 ℃.
Q2. What capacities are listed for the vertical ultra-low temperature freezer?
It is listed in 100L, 540L and 398L capacities.
Related: Refrigerator & Freezer, -86°C Ultra-low Temperature Freezer- Horizontal Type, -40°C Low Temperature Freezer-Vertical Type-Single Door.
For a quotation on the -86°C Ultra-low Temperature Freezer-Vertical Type, contact Didac Scientific.
